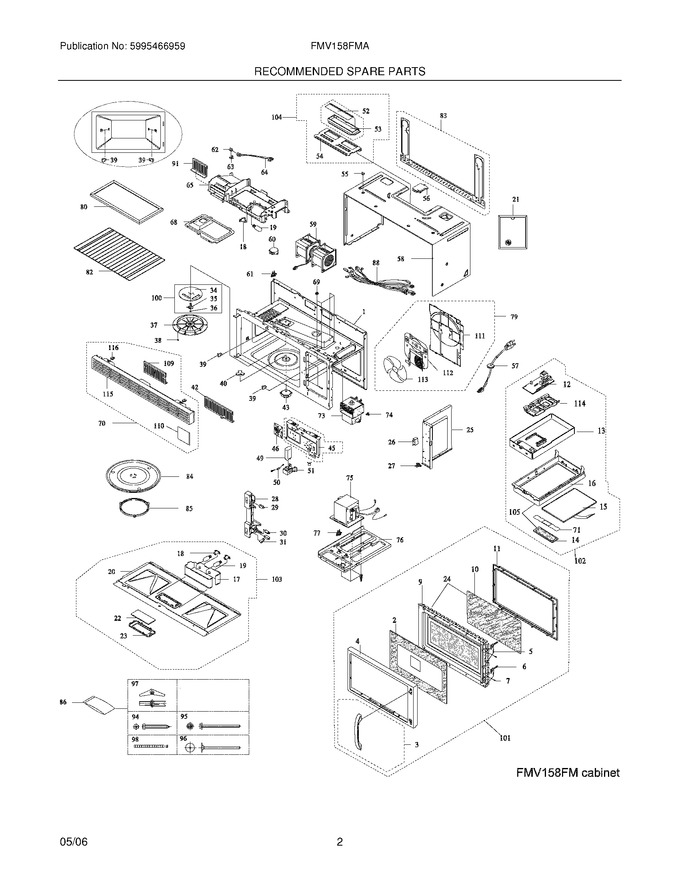

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304456147 | Cavity,assembly |
|
- | |||||
| 2 | 5304456148 | Screen,door |
|
- | |||||
| 3 | 5304456149 | Handle,door |
|
- | |||||
| 4 | 5304456150 | Front,door |
|
- | |||||
| 5 | 5304456151 | Spring,latch ,(2) |
|
- | |||||
| 6 | 5304456152 | Key,latch ,(2) |
|
- | |||||
| 7 | 5304456153 | Pin,hinge ,(2) |
|
- | |||||
| 9 | 5304456154 | Middle Door |
|
- | |||||
| 10 | 5304456118 | Film,door |
|
- | |||||
| 11 | 5304456117 | Liner,door |
|
- | |||||
| 13 | 5304456156 | Bracket,control Panel |
|
- | |||||
| 14 | 5304456157 | Window,display |
|
- | |||||
| 16 | 5304456159 | Panel,control |
|
- | |||||
| 17 | 5304456160 | Bracket,lamp Mounting |
|
- | |||||
| 20 | 5304456161 | Base,bottom |
|
- | |||||
| 21 | 5304456162 | Filter,air ,(2) |
|
- | |||||
| 22 | 5304456163 | Glass,cooktop Lamp |
|
- | |||||
| 23 | 5304456164 | Cover,glass |
|
- | |||||
| 24 | 5304456165 | Middle Door,assembly ,w/film |
|
- | |||||
| 25 | 5304456166 | Duct,side |
|
- | |||||
| 28 | 5304456168 | Latch Body,assembly |
|
- | |||||
| 31 | 5304456099 | Lever,switch ,lower |
|
- | |||||
| 34 | 5304456169 | Blade,stirrer |
|
- | |||||
| 35 | 5304456170 | Holder,stirrer |
|
- | |||||
| 36 | 5304456171 | Tip,stirrer |
|
- | |||||
| 37 | 5304456141 | Cover,stirrer |
|
- | |||||
| 38 | 5304456142 | Button,lock |
|
- | |||||
| 39 | 5304456172 | Holder,rack ,(4) |
|
- | |||||
| 40 | 5304456173 | Coupler,turntable |
|
- | |||||
| 42 | 5304456174 | Cover,front |
|
- | |||||
| 45 | 5304456176 | Bracket,air Guide |
|
- | |||||
| 51 | 5304456179 | Bracket,capacitor |
|
- | |||||
| 52 | 5304456125 | Cover,damper |
|
- | |||||
| 53 | 5304456126 | Damper,main |
|
- | |||||
| 54 | 5304456180 | Bracket,vent Motor |
|
- | |||||
| 55 | 5304456122 | Nut,holder Assembly ,(2) |
|
- | |||||
| 56 | 5304456181 | Bracket,power Cord |
|
- | |||||
| 58 | 5304456182 | Wrapper,outer |
|
- | |||||
| 63 | 5304456186 | Holder,sensor |
|
- | |||||
| 65 | 5304456188 | Dust,upper |
|
- | |||||
| 68 | 5304456189 | Bracket,duct Assembly ,upper |
|
- | |||||
| 69 | 5304456190 | Nut,flange ,(4) |
|
- | |||||
| 70 | 5304456191 | Grille,assembly |
|
- | |||||
| 71 | 5304456192 | Film,display Window |
|
- | |||||
| 73 | 5304456105 | Magnetron Assembly |
|
$ 266.23 | |||||
| 76 | 5304456194 | Plate,base |
|
- | |||||
| 80 | 5304455656 | Filter,charcoal |
|
$ 87.10 | |||||
| 82 | 5304456196 | Rack,wire |
|
- | |||||
| 83 | 5304456197 | Plate,mounting ,assembly |
|
- | |||||
| 84 | 5304456198 | Tray,turntable |
|
$ 127.39 | |||||
| 85 | 5304456199 | Guide,roller Assembly |
|
- | |||||
| 86 | 5304456200 | Hardware Assembly,mounting |
|
- | |||||
| 91 | 5304456202 | Bracket,filter |
|
- | |||||
| 94 | 5304456135 | Screw,inch Mach ,(2) |
|
- | |||||
| 95 | 5304456136 | Bolt,toggle ,(4) |
|
- | |||||
| 96 | 5304456138 | Bolt,flat ,(3) |
|
$ 10.08 | |||||
| 97 | 5304456134 | Nut,toggle ,(4) |
|
- | |||||
| 98 | 5304456137 | Grommet,(2) |
|
- | |||||
| 100 | 5304456203 | Stirrer,assembly |
|
- | |||||
| 101 | 5304456204 | Door Complete,assembly |
|
- | |||||
| 104 | 5304456207 | Hood Damper,assembly |
|
- | |||||
| 105 | 5304456208 | Control Panel,assembly |
|
- | |||||
| 109 | 5304456209 | Bracket,grille |
|
- | |||||
| 110 | 5304456210 | Bracket,grille ,lh |
|
- | |||||
| 111 | 5304456211 | Cover,motor |
|
- | |||||
| 113 | 5304456213 | Blade,fan |
|
- | |||||
| 114 | 5304456214 | Holder,led |
|
- | |||||
| 115 | 5304456215 | Grille |
|
- | |||||
| 116 | 5304456216 | Clip,grille |
|
- | |||||
| F102 | 5304456205 | Control Box,assembly |
|
- | |||||
| F103 | 5304456206 | Bottom Base,assembly |
|
- | |||||
| F112 | 5304456212 | Motor,fan |
|
- | |||||
| F12 | 5304456155 | Pc Board,assembly |
|
- | |||||
| F15 | 5304456158 | Membrane,switch |
|
- | |||||
| F18 | 5304456067 | Holder,lamp ,(3) |
|
- | |||||
| F19 | 5304456066 | Lamp,incandescent ,(3) |
|
- | |||||
| F26 | 5304456068 | Capacitor,motor |
|
- | |||||
| F27 | 5304456167 | Thermostat,motor |
|
- | |||||
| F29 | 5304456100 | Switch,micro ,(2) |
|
- | |||||
| F30 | 5304456101 | Switch,micro |
|
- | |||||
| F43 | 5304456175 | Motor,drive |
|
- | |||||
| F46 | 5304456082 | Filter,noise |
|
- | |||||
| F49 | 5304456177 | Capacitor,oil |
|
$ 83.24 | |||||
| F50 | 5304456178 | Diode,high Voltage |
|
$ 67.57 | |||||
| F57 | 5304456128 | Cord,power Assembly |
|
- | |||||
| F59 | 5304456183 | Motor,ventilation |
|
- | |||||
| F60 | 5304456184 | Motor |
|
- | |||||
| F61 | 5304456094 | Thermostat,upper |
|
$ 55.65 | |||||
| F62 | 5304456185 | Sensor,gas |
|
$ 59.64 | |||||
| F64 | 5304456187 | Harness,wiring ,sensor |
|
- | |||||
| F74 | 5304456106 | Thermostat,magnetron |
|
$ 46.62 | |||||
| F75 | 5304456193 | Transformer,high Voltage |
|
- | |||||
| F77 | 5304456139 | Thermostat,rh ,lower |
|
- | |||||
| F79 | 5304456195 | Motor,fan Assembly |
|
- | |||||
| F88 | 5304456201 | Harness,wiring ,main |
|
- | |||||
| NI | 316488512 | Owners Manual |
|
- | |||||
| NI | 316488506 | Installation Instructions |
|
- | |||||
| NI | 316488507 | Template,rear Wall Instl |
|
- | |||||
| NI | 316488508 | Template,installation ,top |
|
- |
