SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump & Motor Assembly


04 - Rack

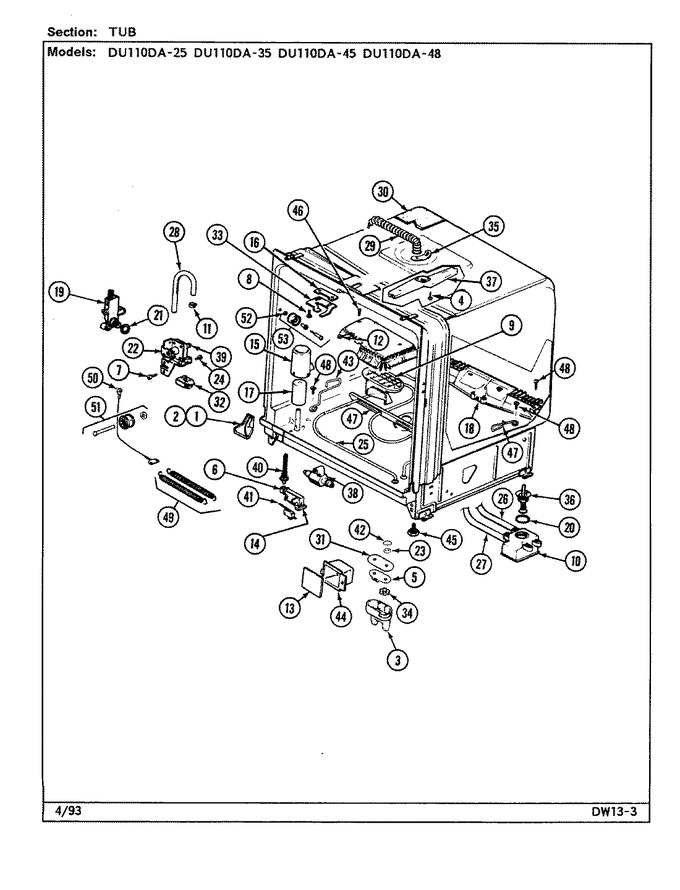

05 - Tub Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2045-0006		Baffle, Tub (lt)		Appelez-nous	-
2	2045-0005		Baffle, Tub (rt)		Appelez-nous	-
3	03000181		Barrier, Heater Element		Appelez-nous	-
4	3005-0030		Screw		Appelez-nous	-
5	03000180		Bracket Assy.		Appelez-nous	-
6	2145-0026		Bracket, Switch		Appelez-nous	-
7	WP3351614		Screw   (Replaces: 3005-0046)			Immediately	$ 6.57
8	03000001		Screw		Appelez-nous	-
9	Y03000213		Cap, Sump		Appelez-nous	-
10	Y03000055		Coll. Chamber		Appelez-nous	-
11	2235-0004		Clamp, Fill Hose		Appelez-nous	-
12	Y03000212		Cover, Inlet		Appelez-nous	-
13	03000215		Cover, Junction Box		Appelez-nous	-
14	2275-0020		Cover		Appelez-nous	-
15	2275-0009		Float, Dome		Appelez-nous	-
17	2410-0002		Float, Flood		Appelez-nous	-
18	Y03000221		Filter Frame Assy		Appelez-nous	-
20	2450-0014		Gasket		Appelez-nous	-
22	2250-0002		Solenoid, Assembly		Appelez-nous	-
23	2480-0003		Grommet		Appelez-nous	-
24	WP489483		Screw   (Replaces: 3005-0076)				$ 10.27
25	2350-0002		Element, Heater		Appelez-nous	-
26	Y03000084		Hose		Appelez-nous	-
27	2530-0010		Hose, Chamber To Pump		Appelez-nous	-
28	2530-0004		Hose		Appelez-nous	-
29	2530-0014		Hose, Power Shower		Appelez-nous	-
30	03000190		Insulation, Tub		Appelez-nous	-
32	03000186		Insulator		Appelez-nous	-
33	2645-0005		Keeper-latch		Appelez-nous	-
34	2735-0009		Nut		Appelez-nous	-
35	WW03F00159		Nut-strip   (Replaces: 3120-0002)			Immediately	$ 170.53
36	Y03000222		Piston & Nut Assy		Appelez-nous	-
37	2020-0003		Arm, Spray		Appelez-nous	-
38	03000054		Check Valve		Appelez-nous	-
39	WD15X93		Valve, Water   (Replaces: 3255-0009)				$ 64.56
40	3085-0001		Stem, Float		Appelez-nous	-
41	3135-0005		Switch, Float		Appelez-nous	-
42	3280-0009		Washer		Appelez-nous	-
42	3280-0003		Washer		Appelez-nous	-
43	03000078		Support, Heater (front)		Appelez-nous	-
44	03000214		Junction Box		Appelez-nous	-
45	2650-0002		Screw, Leveling		Appelez-nous	-
46	3005-0034		Screw		Appelez-nous	-
47	03000079		Support, Heater (rear)		Appelez-nous	-
48	3005-0115		Screw		Appelez-nous	-
49	3070-0006		Door,spring (blue)		Appelez-nous	-
49	3070-0016		Door, Spring (yellow)		Appelez-nous	-
50	Y03000108		Cable & Eyelet Assy				$ 41.91
51	2955-0010		Pulley & Shaft		Appelez-nous	-
52	3280-0003		Washer		Appelez-nous	-
53	2955-0009		Roller & Stud Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
