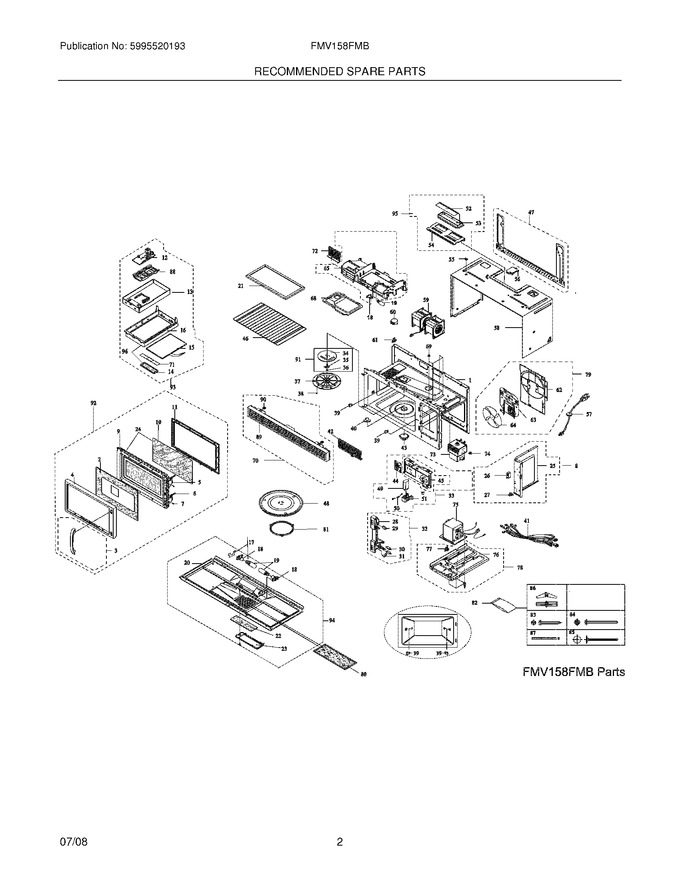

01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304456147 | Cavity,oven ,assembly |
|
- | |||||
| 2 | 5304456148 | Screen,door |
|
- | |||||
| 3 | 5304456149 | Handle,door |
|
- | |||||
| 4 | 5304456150 | Panel,outer Door |
|
- | |||||
| 5 | 5304456151 | Spring,latch ,(2) |
|
- | |||||
| 6 | 5304456152 | Latch,door |
|
- | |||||
| 7 | 5304456153 | Pin,hinge ,(2) |
|
- | |||||
| 9 | 5304468547 | Panel,inner Door |
|
- | |||||
| 10 | 5304456118 | Seal,door ,film |
|
- | |||||
| 11 | 5304456117 | Frame,choke Cover ,inner Door |
|
- | |||||
| 13 | 5304456156 | Panel,control Mount ,bracket |
|
- | |||||
| 14 | 5304456157 | Window,display |
|
- | |||||
| 16 | 5304456159 | Frame,control Panel |
|
- | |||||
| 17 | 5304468549 | Bracket,lamp Mount |
|
- | |||||
| 19 | 5304456066 | Lamp,incandescent |
|
- | |||||
| 20 | 5304456083 | Cover,unit Base |
|
- | |||||
| 22 | 5304456087 | Lens,cooktop Lamp ,glass |
|
- | |||||
| 23 | 5304456085 | Frame,lens Holder |
|
- | |||||
| 24 | 5304456165 | Panel,inner Door ,w/seal |
|
- | |||||
| 25 | 5304456166 | Duct,intake ,side |
|
- | |||||
| 28 | 5304456168 | Latch Hook |
|
- | |||||
| 31 | 5304456099 | Lever,switch ,lower |
|
- | |||||
| 35 | 5304456170 | Holder,stirrer |
|
- | |||||
| 36 | 5304456171 | Tip,stirrer |
|
- | |||||
| 37 | 5304456141 | Cover,stirrer |
|
- | |||||
| 38 | 5304456142 | Button,lock |
|
- | |||||
| 39 | 5304456172 | Holder,rack ,(4) |
|
- | |||||
| 40 | 5304456173 | Coupler,turntable/motor |
|
- | |||||
| 42 | 5304456174 | Cover,front |
|
- | |||||
| 45 | 5304456176 | Bracket,air Guide |
|
- | |||||
| 46 | 5304456196 | Rack,wire |
|
- | |||||
| 47 | 5304456197 | Bracket,mounting Plate ,rear |
|
- | |||||
| 48 | 5304456198 | Tray,turntable |
|
$ 127.39 | |||||
| 51 | 5304456179 | Bracket,capacitor |
|
- | |||||
| 52 | 5304457620 | Cover,damper |
|
- | |||||
| 53 | 5304456126 | Damper,main |
|
- | |||||
| 54 | 5304456180 | Bracket,vent Motor |
|
- | |||||
| 55 | 5304456122 | Nut,holder Assembly ,(2) |
|
- | |||||
| 56 | 5304456181 | Bracket,power Cord |
|
- | |||||
| 58 | 5304468552 | Cabinet,outer Casing |
|
- | |||||
| 62 | 5304456211 | Cover,motor |
|
- | |||||
| 65 | 5304456188 | Duct,upper |
|
- | |||||
| 68 | 5304456189 | Bracket,duct Assembly ,upper |
|
- | |||||
| 69 | 5304456190 | Nut,flange ,(4) |
|
- | |||||
| 70 | 5304456191 | Grille,assembly |
|
- | |||||
| 71 | 5304456192 | Film,display Window |
|
- | |||||
| 72 | 5304456202 | Bracket,filter |
|
- | |||||
| 76 | 5304468555 | Base,transformer |
|
- | |||||
| 81 | 5304456199 | Guide,roller Assembly |
|
- | |||||
| 82 | 5304456200 | Hardware Assembly,mounting |
|
- | |||||
| 83 | 5304456135 | Screw,machine ,inch |
|
- | |||||
| 84 | 5304456136 | Bolt,toggle ,(3) |
|
- | |||||
| 85 | 5304456138 | Bolt,flat Head ,(3) |
|
$ 10.08 | |||||
| 86 | 5304456134 | Nut,toggle ,(3) |
|
- | |||||
| 87 | 5304456137 | Grommet,nylon ,(2) |
|
- | |||||
| 88 | 5304456214 | Holder,led |
|
- | |||||
| 89 | 5304456215 | Grille |
|
- | |||||
| 90 | 5304456216 | Clip,grille |
|
- | |||||
| 92 | 5304456204 | Door Complete,assembly |
|
- | |||||
| 95 | 5304457619 | Damper Assembly,hood |
|
- | |||||
| F12 | 5304468548 | Control Board,printed Circuit |
|
- | |||||
| F15 | 5304456158 | Switch,touch Pad ,membrane |
|
- | |||||
| F18 | 5304456067 | Lampholder,socket |
|
- | |||||
| F21 | 5304455656 | Filter,charcoal |
|
$ 87.10 | |||||
| F26 | 5304456068 | Capacitor,motor |
|
- | |||||
| F27 | 5304456167 | Thermostat,motor |
|
- | |||||
| F29 | 5304456100 | Switch,micro ,(2) |
|
- | |||||
| F30 | 5304456101 | Switch,micro |
|
- | |||||
| F32 | 5304456098 | Latch Hook Assembly,w/switches |
|
- | |||||
| F33 | 5304468550 | Air Guide Assy,w/electricals |
|
- | |||||
| F34 | 5304456169 | Fan Blade,stirrer |
|
- | |||||
| F41 | 5304468551 | Wiring Harness,main-a |
|
- | |||||
| F43 | 5304456175 | Motor,drive |
|
- | |||||
| F44 | 5304456082 | Filter,noise ,electronic |
|
- | |||||
| F49 | 5304456177 | Capacitor,air Guide Assy |
|
$ 83.24 | |||||
| F50 | 5304456178 | Diode,high Voltage |
|
$ 67.57 | |||||
| F57 | 5304456128 | Power Cord,electric |
|
- | |||||
| F59 | 5304468553 | Motor,hood Fan |
|
- | |||||
| F60 | 5304456184 | Motor,synchronous |
|
- | |||||
| F61 | 5304456094 | Thermostat,upper |
|
$ 55.65 | |||||
| F63 | 5304468554 | Motor,cooling Fan |
|
- | |||||
| F64 | 5304456213 | Fan Blade |
|
- | |||||
| F73 | 5304456105 | Magnetron Assembly |
|
$ 266.23 | |||||
| F74 | 5304456106 | Thermostat |
|
$ 46.62 | |||||
| F75 | 5304456193 | Transformer,high Voltage |
|
- | |||||
| F77 | 5304456139 | Thermostat,rh ,lower |
|
- | |||||
| F78 | 5304468556 | Base,transformer ,w/thermostat |
|
- | |||||
| F79 | 5304468557 | Fan Motor Assembly |
|
- | |||||
| F8 | 5304468546 | Duct,intake ,side ,w/electricals |
|
- | |||||
| F80 | 5304465235 | Filter,air |
|
$ 51.03 | |||||
| F91 | 5304456203 | Stirrer,assembly |
|
- | |||||
| F93 | 5304456205 | Control Box,assembly |
|
- | |||||
| F94 | 5304468558 | Cover Assembly,unit Base |
|
- | |||||
| F96 | 5304456208 | Control Panel,assembly |
|
- | |||||
| NI | 316488512 | Owners Manual |
|
- | |||||
| NI | 316488506 | Installation Instructions |
|
- | |||||
| NI | 316488508 | Template,installation ,top |
|
- | |||||
| NI | 316488507 | Template,installation ,wall |
|
- |
