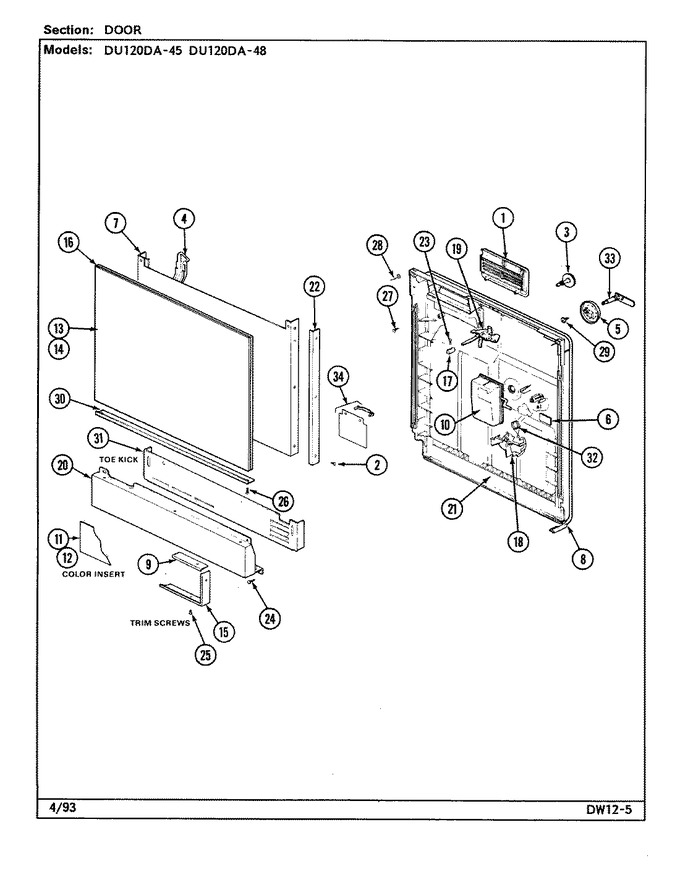

SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump Assembly


04 - Rack


05 - Tub Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3265-0002		Vent Assy.		Appelez-nous	-
2	W11233072		Screw   (Replaces: Y03000188)			Immediately	$ 13.25
3	Y03000003		Cap, Fill		Appelez-nous	-
4	2255-0002		Conduit, Harness		Appelez-nous	-
5	2275-0005		Cover, Detergent Cup				$ 43.29
6	2307-0001		Deflector		Appelez-nous	-
7	Y03000093		Door &hinge Assembly (outer)		Appelez-nous	-
7	2095-0002		Bearing, Hinge Arm		Appelez-nous	-
8	2450-0016		Gasket		Appelez-nous	-
9	3230-0088		Trim, Top Acces Panel		Appelez-nous	-
10	Y03000002		Injector, Rinse		Appelez-nous	-
11	2580-0035		Insert, Panel (alm/wht)		Appelez-nous	-
11	2580-0036		Insert, Panel (blk/harv)		Appelez-nous	-
12	2590-0012		Insulator		Appelez-nous	-
13	2580-0004		Insert,almond/white		Appelez-nous	-
14	2580-0005		Insert, Black/hvst		Appelez-nous	-
15	3230-0089		Trim,bottom, & Sides		Appelez-nous	-
16	2590-0010		Insulator		Appelez-nous	-
17	2615-0021		Knob, Latch Handle		Appelez-nous	-
18	2195-0011		Cam, Detergent Trip		Appelez-nous	-
19	Y03000191		Latch, Assembly		Appelez-nous	-
20	Y03000189		Panel, Access		Appelez-nous	-
21	Y03000080		Panel, Inner Door		Appelez-nous	-
22	Y03000096		Trim, Door (side)		Appelez-nous	-
23	3005-0029		Screw		Appelez-nous	-
24	61002031		Screw   (Replaces: 3005-0033)				$ 43.43
25	W11233072		Screw   (Replaces: Y03000188)			Immediately	$ 13.25
26	3005-0014		Screw		Appelez-nous	-
27	3005-0032		Screw		Appelez-nous	-
28	3005-0028		Screw		Appelez-nous	-
29	3005-0074		Screw		Appelez-nous	-
30	03000095		Trim Bottom Door		Appelez-nous	-
31	Y03000037		Toe Kick		Appelez-nous	-
32	3070-0032		Spring, Detergent Latch		Appelez-nous	-
33	3020-0007		Shaft, Det. Cup		Appelez-nous	-
34	3030-0001		Shield,drip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
