Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1104634 Panel, Refrigerator Door (golden Harvest) Appelez-nous -
1 1104638 Panel, Refrigerator Door (platinum) Appelez-nous -
1 1104637 Panel, Refrigerator Door (toast) Appelez-nous -
1 1104636 Panel, Refrigerator Door (almond) Appelez-nous -
1 1104632 Panel, Refrigerator Door (white) Appelez-nous -
2 534927 Hole Plug (2) Appelez-nous -
3 943185 Plate, Tap (4) Appelez-nous -
4 944036 Bracket, Door Stop Appelez-nous -
5 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 8.24

6 WP8281206 Screw, 8-15 X 1/2   (Replaces: 489028) Special Order $ 8.37

6 488930 Screw (repair) Appelez-nous -
7 WP2212648 Hole Plug (golden Harvest)   (Replaces: 989893) In-Stock Immediately $ 8.19

7 1100189 Hole Plug (platinum) Appelez-nous -
7 WP2212648 Hole Plug (white)   (Replaces: 844478) In-Stock Immediately $ 8.19

7 989196 Hole Plug (almond) Appelez-nous -
7 1100188 Hole Plug (toast) Appelez-nous -
8 1109186 Door Gasket, Magnetic Appelez-nous -
9 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

9 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

10 943182 Handle End Appelez-nous -
11 WP2183139 Handle End Cap   (Replaces: 1101632) In-Stock Immediately $ 51.98

12 1106189 Handle, Center Appelez-nous -
12 1109166 Handle Center (for Platinum Model Only) Appelez-nous -
13 992872 Shim, Handle End (side) Appelez-nous -
14 943188 Spacer, Handle Door Special Order $ 7.80

15 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.88

16 WP488920 Screw, 8 X 5/8 (2)   (Replaces: 488920) Special Order $ 7.98

17 WP488729 Screw, 8 X 1/2   (Replaces: 487875) In-Stock Immediately $ 8.28

18 WP1101634 Screw, Cover   (Replaces: 1101634) Special Order $ 9.68

19 1111825 Interior Door Panel Appelez-nous -
20 1111816 Trim, Door (2) Appelez-nous -
21 1111817 Trim, Door Appelez-nous -
22 1111841 Compartment Door, Utility Appelez-nous -
23 1111840 Compartment, Butter Door Appelez-nous -
24 1107329 Clip, Medallion Appelez-nous -
25 WP488729 Screw, 8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 8.28

26 1111705 Medallion Appelez-nous -
27 520747 Tray, Butter Appelez-nous -
28 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

28 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

28 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

28 350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

28 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

28 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
28 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

28 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

28 876370 Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

28 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

28 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

28 261890 Xenamel, Golden Harvest (13 Oz. Spray Can) Appelez-nous -
28 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
28 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
28 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

28 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
28 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

28 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

28 261891 Enamel, Golden Harvest (1 Qt. Uncut) Appelez-nous -
28 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
28 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
28 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
28 833938 Kit, Terminal Connector Special Order $ 8.47

28 509929 Cap, Hinge Sleeve (2) Appelez-nous -
28 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

28 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

28 876370 Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) Special Order $ 243.14

28 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
28 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

28 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

28 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
28 799832 Kit. Porcelain Repair (white) Appelez-nous -
28 799908 Silicone (spray) Appelez-nous -
28 350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

28 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
28 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

LIT879811 Parts List Appelez-nous -
LIT1111824 Energy Label Appelez-nous -
LIT1114055 Care & Use Guide Appelez-nous -
LIT1105320 Service & Wiring Sheet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

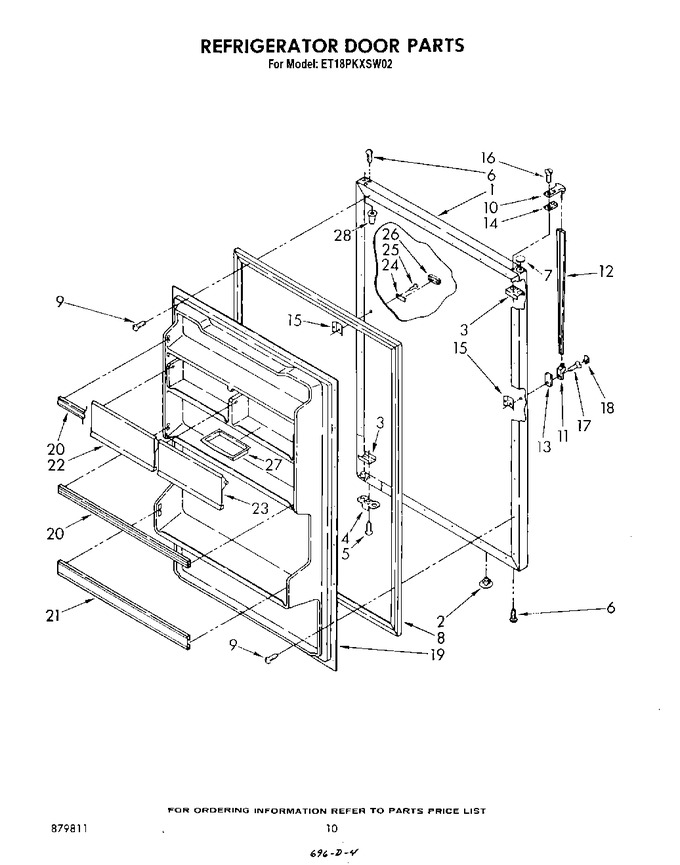

Diagram for ET18PKXSW02
