SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door

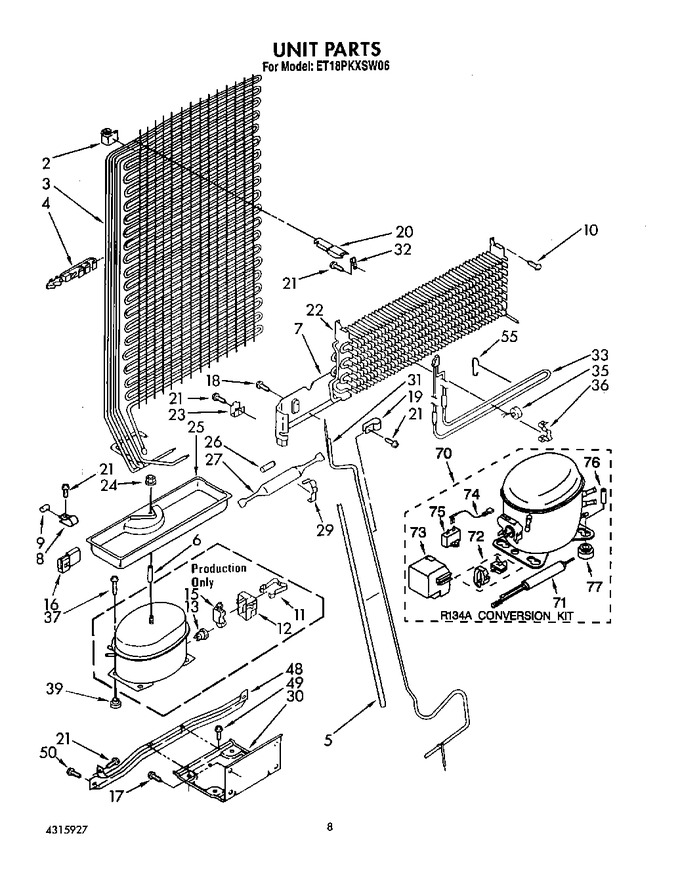

07 - Unit


08 - Refrigerator Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1103640		Bumper (2)		Appelez-nous	-
3	1108183		Condenser & Precooler Assembly		Appelez-nous	-
4	1118652		Clip, Tube (2)		Appelez-nous	-
5	1108073		Sleeve		Appelez-nous	-
6	1105130		Spacer		Appelez-nous	-
7	1108359		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	945593		Dampener		Appelez-nous	-
10	WP489174		Screw (2)   (Replaces: 489169)				$ 7.30
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	1105163		Overload		Appelez-nous	-
15	946615		Relay		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
17	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 11.87
19	489151		Tube, Clamp		Appelez-nous	-
20	1100636		Clip, Stand Off Assembly		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
21	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
22	943762		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	1101002		Evaporator Tray		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
29	1127590		Clamp, Dryer		Appelez-nous	-
30	1118781		Unit Mounting Plate		Appelez-nous	-
31	1127560		Exchanger, Heat		Appelez-nous	-
32	1100707		Clip, Stand Off		Appelez-nous	-
33	1105165		Heater, Defrost		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 1108164)				$ 126.90
36	942873		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
48	1118783		Unit Mounting Rail		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
50	488973		Screw, 1/4-28 X 1		Appelez-nous	-
55	1108172		Support, Heater		Appelez-nous	-
70	482801		Install Kit				$ 119.50
70	876765		Tube Kit			Immediately	$ 90.65
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 57.13
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 191.05
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 95.29
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.51
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 185.89
76	4387559		Sleeve		Appelez-nous	-
77	876764		Valve, Access(3/16``)			Immediately	$ 95.92
77	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
77	978029		Valve Access (5/8``)				$ 93.85
77	978030		Valve, Access (3/4``)				$ 137.25
77	WP4387558		Grommet   (Replaces: 4387558)				$ 7.30
77	978026		Valve, Access (5/16``)			Immediately	$ 134.49
77	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
77	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
