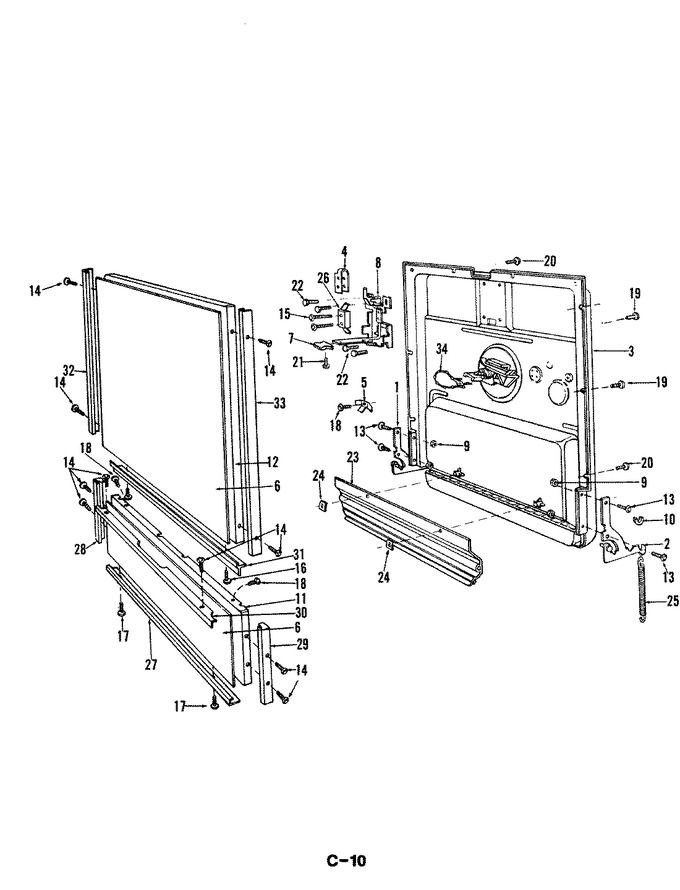

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	805682		Lh Arm		Appelez-nous	-
2	805681		Rh Arm		Appelez-nous	-
3	809052		Door Assembly		Appelez-nous	-
4	807450		Switch Cover		Appelez-nous	-
5	807213		Ground Terminal		Appelez-nous	-
6	808914		Acc Pnl Insert		Appelez-nous	-
7	806398		Latch Knob		Appelez-nous	-
8	807016		Latch Asm		Appelez-nous	-
9	M0282009		Locknut   (Replaces: 808470)				$ 12.66
10	805884		Spring Pad		Appelez-nous	-
11	809108		Access Panel		Appelez-nous	-
12	807262		Outer Panel		Appelez-nous	-
13	803311		Screw		Appelez-nous	-
14	WP74004005		Screw   (Replaces: 807293)				$ 7.79
15	808618		Screw		Appelez-nous	-
16	807501		Screw		Appelez-nous	-
17	W11233072		Screw   (Replaces: 803416)			Immediately	$ 13.25
18	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
19	808749		Screw		Appelez-nous	-
20	WP7101P126-60		Screw   (Replaces: 809055)			Immediately	$ 7.52
21	809163		Screw		Appelez-nous	-
22	809029		Screw		Appelez-nous	-
23	809025		Baffle Seal		Appelez-nous	-
24	809026		Speednut		Appelez-nous	-
25	805683		Door Spring		Appelez-nous	-
26	807043		Switch		Appelez-nous	-
27	808027		Bottom Trim		Appelez-nous	-
28	808977		Door Trim		Appelez-nous	-
29	808028		Rh Trim		Appelez-nous	-
30	808346		Acc Pnl Trim		Appelez-nous	-
31	COMM PART		Door Trim   (Replaces: 807347)		Appelez-nous	-
32	808977		Door Trim		Appelez-nous	-
33	808976		Door Trim		Appelez-nous	-
34	808926		Black Door Kit		Appelez-nous	-
34	809075		Wire Tie		Appelez-nous	-
