01 - Control Panel
02 - Detergent Cup
03 - Door
04 - Frame
05 - Motor, Heater & Spray Arm
06 - Rack
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

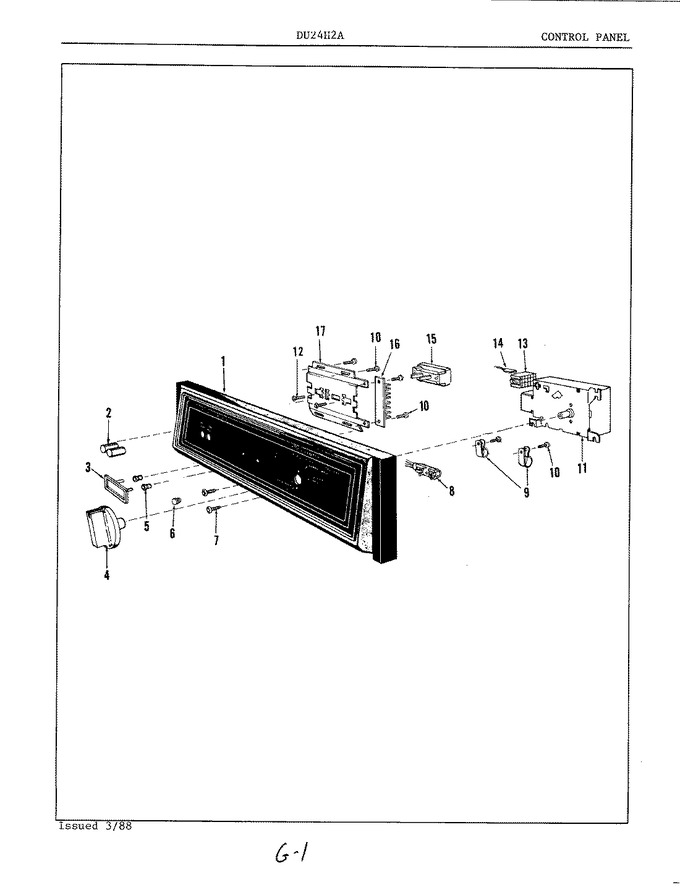

| 1 | 809337 | Console Panel |
|
- | |||||
| 2 | 809323 | Pushbutton |
|
- | |||||
| 3 | 809324 | Nameplate |
|
- | |||||
| 3 | 809326 | Nameplate |
|
- | |||||
