Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 809072 Det Cup Trigger Appelez-nous -
2 154180301 Cam   (Replaces: 806566) Special Order $ 32.84

3 809028 Dispenser Lid Appelez-nous -
4 806647 O Ring Appelez-nous -
5 808827 Roll Pin Appelez-nous -
6 809029 Screw Appelez-nous -
7 805227 Spring Appelez-nous -
8 806567 Spring Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

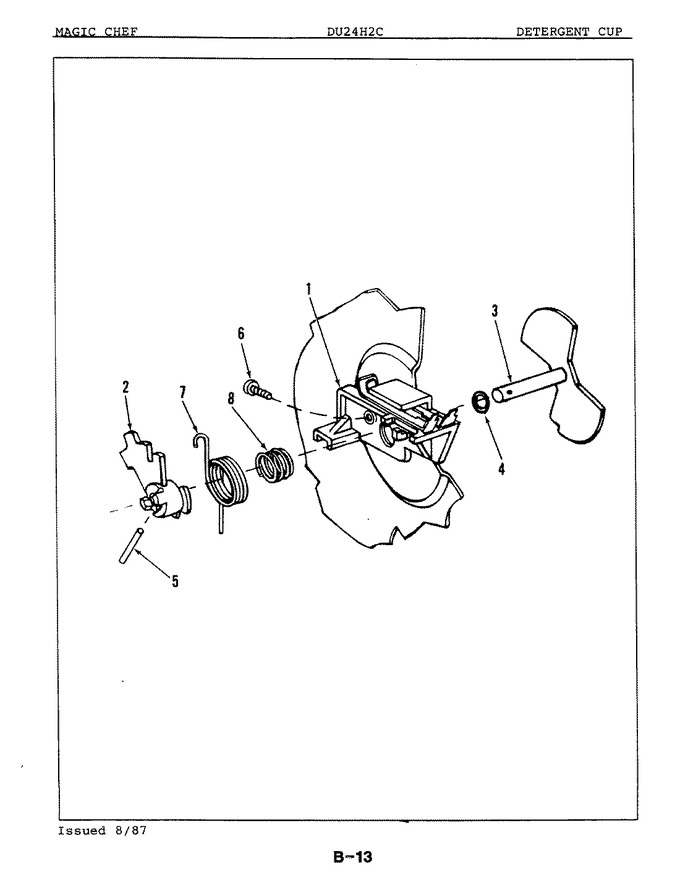

Diagram for DU24H2C
