SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional

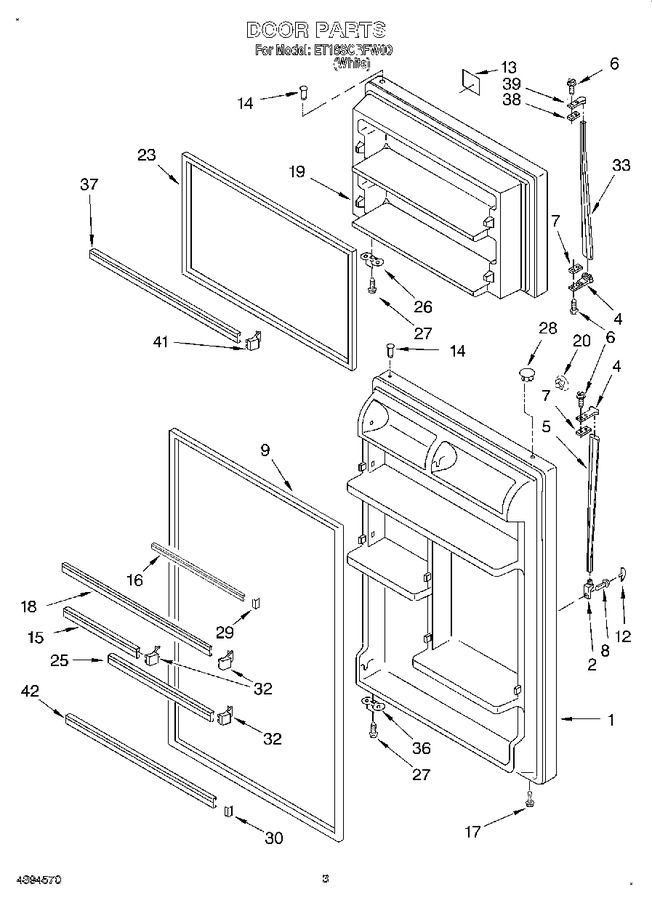

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes No.9 & No.14)		Appelez-nous	-
2	819342		End Cap   (Replaces: 2183140)			Immediately	$ 47.96
4	819342		End Cap, Handle (2)   (Replaces: 1108952)			Immediately	$ 47.96
5	1109166		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2159057		Door Gasket, Magnetic (service)			Immediately	$ 164.66
12	WP1101634		Cover, Screw   (Replaces: 1110059)				$ 9.22
13	2175383		Nameplate		Appelez-nous	-
14	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
15	2195366		Trim, Door		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	2195365		Trim, Door		Appelez-nous	-
19	2182487		Freezer Door (includes No.14 & No.23)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.40
23	2159327		Door Gasket, Magnetic (service)			Immediately	$ 164.58
25	WP2195943		Trim, Door Shelf   (Replaces: 2195367)				$ 87.41
26	W11745278		Bracket, Door Stop   (Replaces: 2183805)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.18
32	WP2195915		Plug-trim   (Replaces: 2156000)				$ 13.07
33	2173344		Handle, F.c.		Appelez-nous	-
36	944035		Bracket, Door Stop		Appelez-nous	-
37	2171282		Trim-door (2)		Appelez-nous	-
38	943187		Shim				$ 25.14
39	1108955		Handle End		Appelez-nous	-
41	WP2195916K		Endcap (4)   (Replaces: 2156002)			Immediately	$ 12.55
42	2193216		Trim, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
