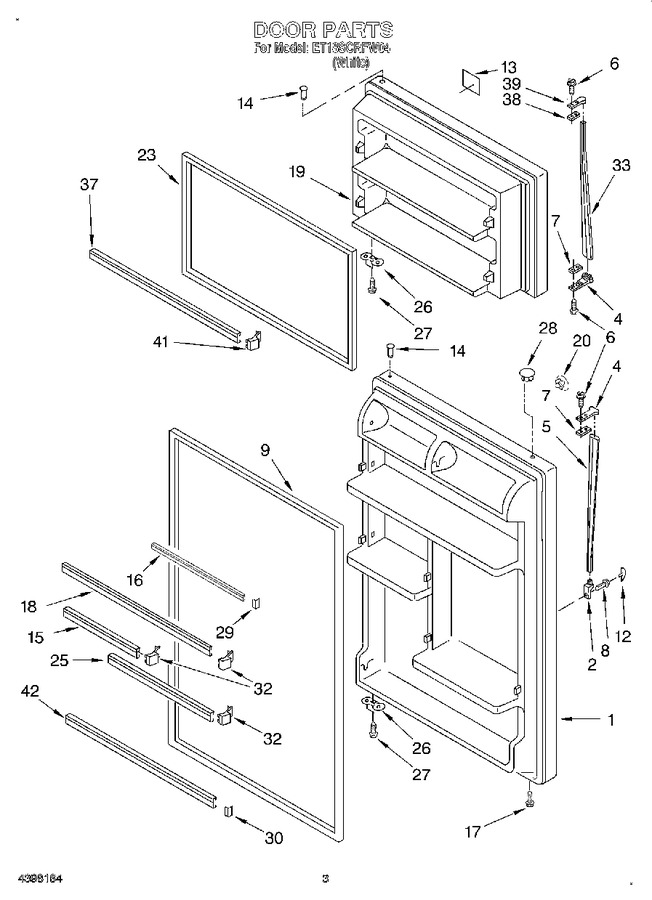

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes No.9 & No.14) |
|
- | |||||
| 2 | 819342 | End Cap (Replaces: 2183140) |
|
Immediately | $ 47.96 | ||||
| 4 | 819342 | End Cap, Handle (2) (Replaces: 1108952) |
|
Immediately | $ 47.96 | ||||
| 5 | 1109166 | Handle, Center |
|
- | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.49 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 9 | 2159057 | Door Gasket, Magnetic (service) |
|
Immediately | $ 164.66 | ||||
| 12 | WP1101634 | Cover, Screw (Replaces: 1110059) |
|
$ 9.22 | |||||
| 13 | 2157907 | Nameplate |
|
$ 6.56 | |||||
| 14 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 15 | 2201052 | Trim, Door |
|
$ 28.91 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 18 | WP2201051 | Trim, Door (Replaces: 2201051) |
|
$ 109.59 | |||||
| 19 | 2182487 | Freezer Door (includes No.14 & No.23) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 23 | 2159327 | Door Gasket, Magnetic (service) |
|
Immediately | $ 164.58 | ||||
| 25 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 87.41 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 29 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 32 | WP2195915 | Endcap, Trim (Replaces: 2195915) |
|
$ 13.07 | |||||
| 33 | 2173344 | Handle, F.c. |
|
- | |||||
| 37 | 2201050 | Trim-door (2) |
|
$ 43.26 | |||||
| 38 | 943187 | Shim |
|
$ 25.14 | |||||
| 39 | 1108955 | Handle End |
|
- | |||||
| 41 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 129.76 | |||||
| 100 | 2200785 | Featurepak (includes 15, 16, 18, 25, 29, 30, 32, 37, 41, 42) Also See Shelf Pg. |
|
- |
