SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit

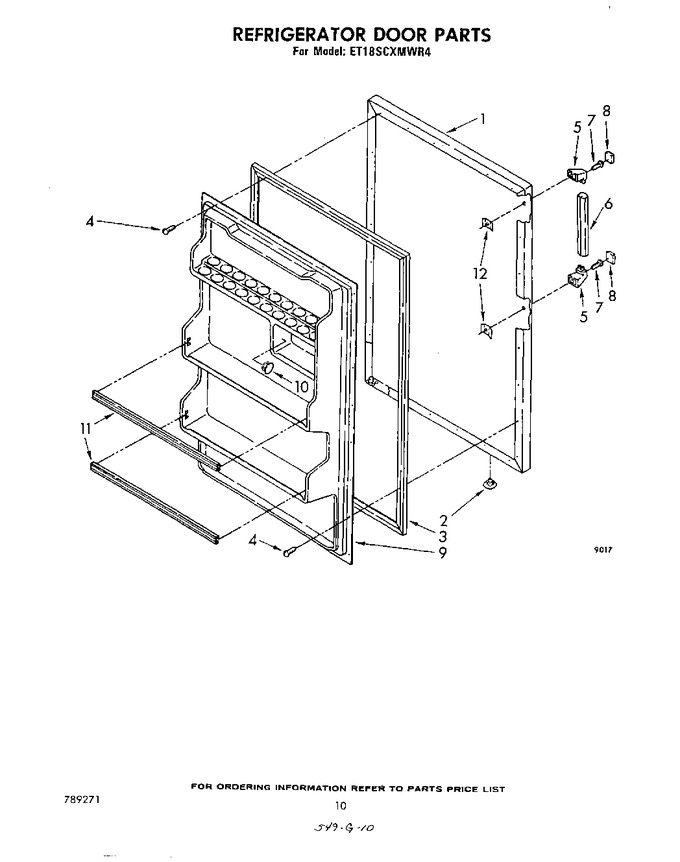

08 - Refrigerator Door , Parts Not Illus


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103993		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1103992		Panel, Refrigerator Door (almond)		Appelez-nous	-
1	1103991		Panel, Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	946991		Door Gasket, Magnetic		Appelez-nous	-
4	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
4	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
5	992814		End Cap, Handle		Appelez-nous	-
6	1100023		Handle, Center		Appelez-nous	-
7	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
8	1100024		Door Handle, Cover		Appelez-nous	-
9	945886		Interior Door Panel		Appelez-nous	-
10	655410		Hole Plug (2)		Appelez-nous	-
11	946819		Trim, Door Shelf (2)		Appelez-nous	-
12	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
12	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
12	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
12	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
12	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
12	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
12	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
12	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
12	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
12	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
12	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
12	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
12	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
12	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
12	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
12	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
12	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
12	799908		Silicone (spray)		Appelez-nous	-
12	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
12	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
12	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
12	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
12	833938		Kit, Terminal Connector				$ 8.47
	LIT946417		Care & Use Guide		Appelez-nous	-
	LIT110603		Energy Guide		Appelez-nous	-
	677821		Compactor				$ 35.01
	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT789271		List, Repair Parts		Appelez-nous	-
	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	LIT1105320		Tech Sheet (service Information)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	677967		Dishwasher		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
