02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

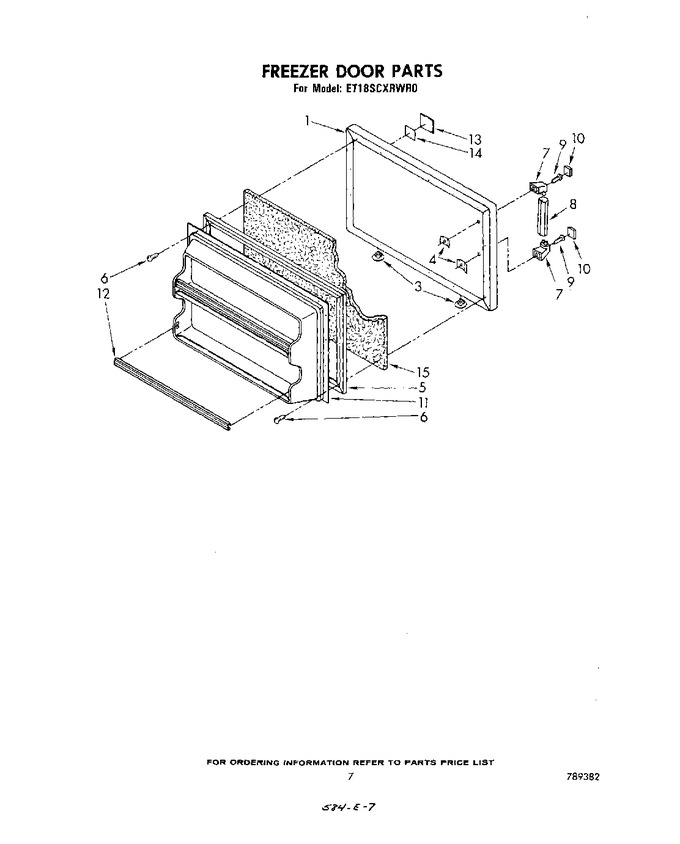

| 1 | 1106166 | Panel, Freezer Door (also Order Item 15) (white) |
|
- | |||||
| 3 | 534927 | Hole Plug |
|
- | |||||
| 4 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 5 | 946997 | Door Gasket (magnetic) |
|
- | |||||
| 6 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 6 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 7 | 992814 | End Cap, Handle |
|
- | |||||
| 8 | 1100023 | Handle, Center |
|
- | |||||
| 9 | 488923 | Screw (repair) |
|
- | |||||
| 9 | 488987 | Screw, 8-15 X 1-5/8 |
|
- | |||||
| 10 | 1100024 | Door Handle, Cover |
|
- | |||||
| 11 | 945802 | Interior Door Panel |
|
- | |||||
| 12 | 946824 | Trim, Door Shelf |
|
- | |||||
| 13 | 945114 | Nameplate Assembly |
|
- | |||||
| 14 | 991259 | Tape |
|
- | |||||
| 15 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door) |
|
- |
