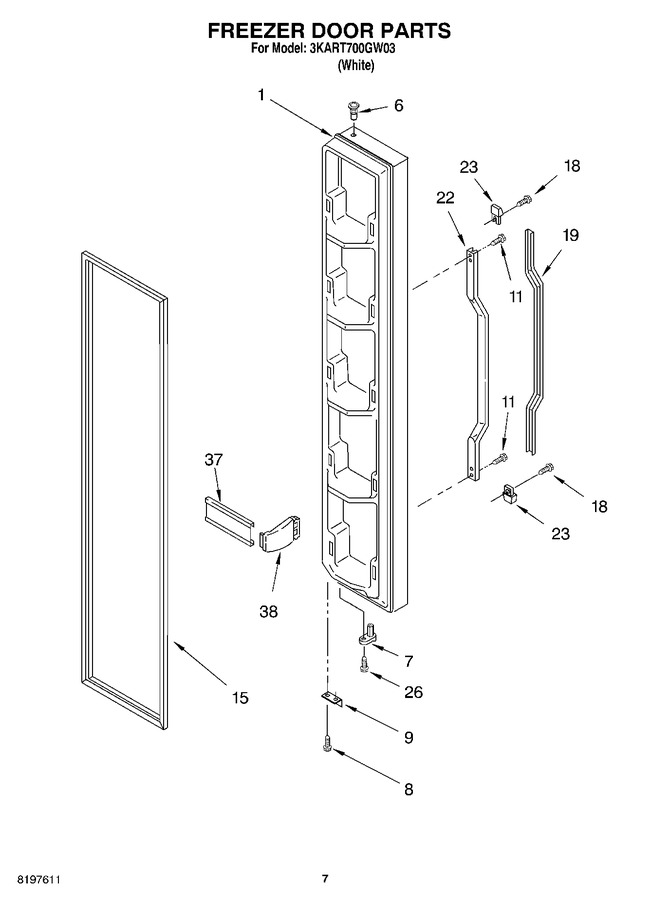

05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2212055W		Freezer Door		Appelez-nous	-
6	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.34
7	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
8	WP999367		Screw   (Replaces: 489367)				$ 7.70
9	2195950		Bracket, Door Stop				$ 5.84
11	WP489463		Screw   (Replaces: 489463)				$ 7.43
15	2159072		Door Gasket, Magnetic (service)				$ 291.24
18	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
19	2187033		Insert, Handle		Appelez-nous	-
22	2187031		Retainer, Insert		Appelez-nous	-
23	2194778W		Endcap		Appelez-nous	-
26	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
37	2214411		Trim, Door Shelf		Appelez-nous	-
38	2195917		Endcap, Trim (left Side (5))		Appelez-nous	-
38	WP2195916K		Endcap, Trim (right Side (5))   (Replaces: 2195916)			Immediately	$ 11.86
