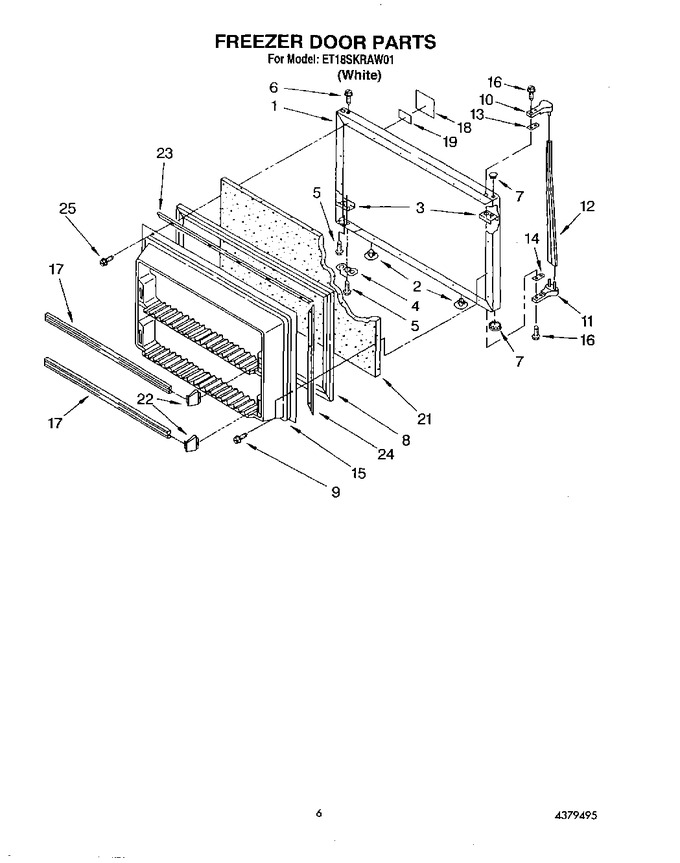

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2157708		Panel, Freezer Door (also Order Item 21)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw   (Replaces: 489028)				$ 8.37
7	84478		Ole Plug		Appelez-nous	-
8	1116735		Door Gasket Magnetic		Appelez-nous	-
9	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 62.77
11	2148503		Handle End		Appelez-nous	-
12	2163255		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1116610		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP2201061		Trim, Door Shelf (2)   (Replaces: 2163301)				$ 124.32
18	2162781		Nameplate		Appelez-nous	-
19	991259		Strip, Tape		Appelez-nous	-
21	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90
23	1115137		Retainer, Gasket Top & Bottom		Appelez-nous	-
24	1115138		Retainer, Gasket Side (2)		Appelez-nous	-
25	WP488729		Corner Screw   (Replaces: 489287)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
