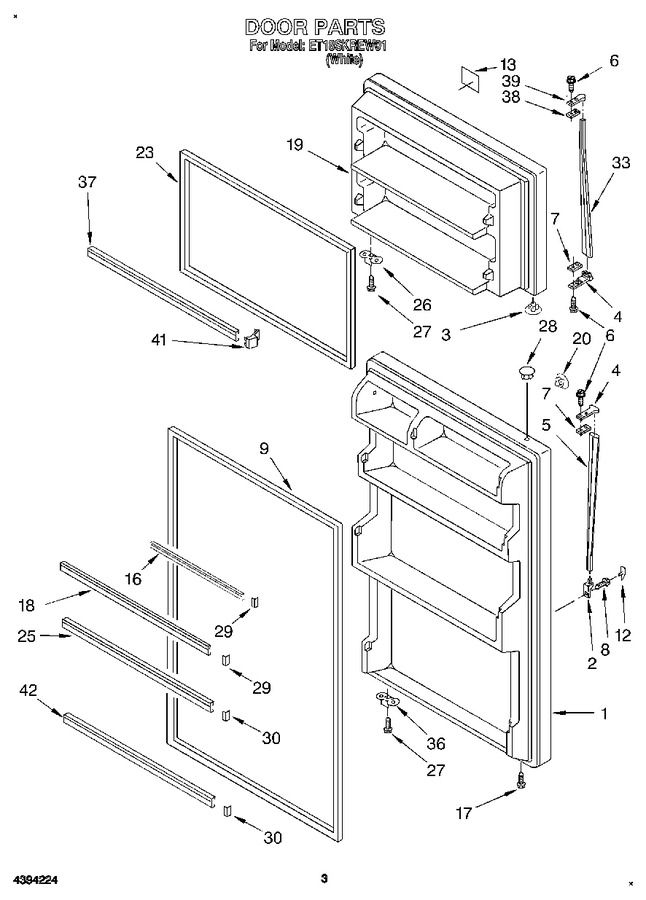

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door (includes No.9)		Appelez-nous	-
2	819342		End Cap   (Replaces: 2183140)			Immediately	$ 47.96
3	534927		Hole Plug (2)		Appelez-nous	-
4	819342		End Cap, Handle (2)   (Replaces: 1108952)			Immediately	$ 47.96
5	1109166		Handle, Center		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2159057		Door Gasket, Magnetic (service)			Immediately	$ 164.66
12	WP1101634		Cover, Screw   (Replaces: 1110059)				$ 9.22
13	2162781		Nameplate		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2163679)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	WP2201061		Trim, Door   (Replaces: 2163680)				$ 118.40
19	2159270		Freezer Door (includes No.23)		Appelez-nous	-
20	WP2189000		Hole Plug   (Replaces: 1122653)			Immediately	$ 7.40
23	2159327		Door Gasket, Magnetic (service)			Immediately	$ 164.58
25	2163684		Trim, Door Shelf		Appelez-nous	-
26	2159367		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.18
33	2159424		Handle, F.c.		Appelez-nous	-
36	2159368		Bracket, Door Stop (chrome)		Appelez-nous	-
36	2159364		Bracket, Door Stop (black)		Appelez-nous	-
37	WP2201061		Trim-door (2)   (Replaces: 2163681)				$ 118.40
38	943187		Shim				$ 25.14
39	1108955		Handle End		Appelez-nous	-
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 12.62
42	2163685		Trim, Door		Appelez-nous	-
