SELECT A DIAGRAM

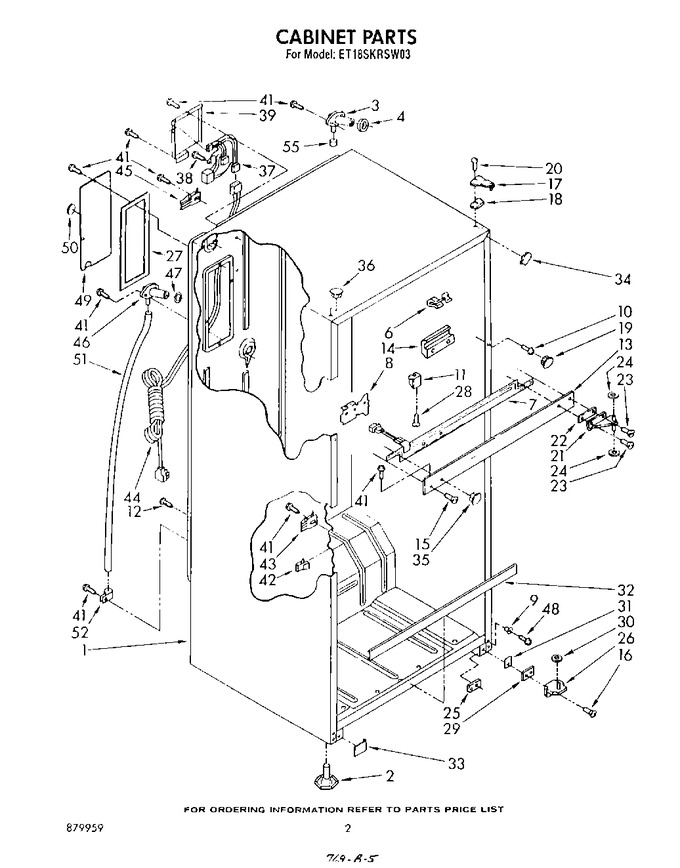

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	944766		Leveler (2)		Appelez-nous	-
3	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
4	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
6	534365		Breaker, Trim Clip (3)				$ 14.83
7	1108139		Heater, Mullion		Appelez-nous	-
8	1110231		Center Rail, Bracket (2)		Appelez-nous	-
9	942737		Ferrule, Center Rail (2)		Appelez-nous	-
10	489277		Screw (2)		Appelez-nous	-
11	940024		Spacer		Appelez-nous	-
12	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
13	1110345		Center Rail (almond)		Appelez-nous	-
13	1110343		Center Rail (white)		Appelez-nous	-
14	939034		Center, Rail Shim (2)		Appelez-nous	-
15	489184		Screw		Appelez-nous	-
16	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
16	488949		Screw (repair)		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100509		Shim, Top Hinge		Appelez-nous	-
19	1126571		Hole Plug (2) (almond)		Appelez-nous	-
19	1122929		Hole Plug (2) (white)		Appelez-nous	-
20	488949		Screw (repair)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 1/2   (Replaces: 489077)				$ 8.56
21	944788		Hinge, Center				$ 32.65
22	836155		Shim, Hinge Center		Appelez-nous	-
22	836195		Shim, Center (repair)		Appelez-nous	-
23	488949		Screw (repair)		Appelez-nous	-
23	489179		Screw		Appelez-nous	-
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.55
25	944813		Tap Plate (2)		Appelez-nous	-
26	1123880		Hinge Butt, Bottom		Appelez-nous	-
27	1106510		Seal, Gasket		Appelez-nous	-
28	WP489174		Screw (2)   (Replaces: 489169)				$ 7.30
29	942812		Shim, Bottom		Appelez-nous	-
30	489201		Washer, 7/64		Appelez-nous	-
31	942822		Cover, Glider Rail (almond)		Appelez-nous	-
31	942818		Cover, Glider Rail (white)		Appelez-nous	-
32	1109364		Cover, Deck Rail (white)		Appelez-nous	-
32	1109368		Cover, Deck Rail (almond)		Appelez-nous	-
33	943552		Cover, Glider Rail (white)		Appelez-nous	-
33	944831		Cover, Glider Rail (almond)		Appelez-nous	-
34	1110684		Filler, Wrap Corner (white)		Appelez-nous	-
34	1110685		Filler, Wrap Corner (almond)		Appelez-nous	-
35	1119707		Hole Plug (white)		Appelez-nous	-
35	1119709		Hole Plug (almond)		Appelez-nous	-
36	989195		Hole Plug (2) (almond)		Appelez-nous	-
36	842031		Hole Plug (2) (white)		Appelez-nous	-
37	942844		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	942845		Cover, Wiring		Appelez-nous	-
41	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
41	WP489478		Screw   (Replaces: 489242)				$ 8.18
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 14.06
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	942813		Fitting, Drain		Appelez-nous	-
47	1106507		Seal, Gasket		Appelez-nous	-
48	488428		Screw (2)		Appelez-nous	-
49	1106511		Plug Assembly		Appelez-nous	-
50	1120224		Hole Seal		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509640)				$ 125.72
52	519405		Clamp		Appelez-nous	-
55	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67

    View Diagram in Separate Window       Print Part List
