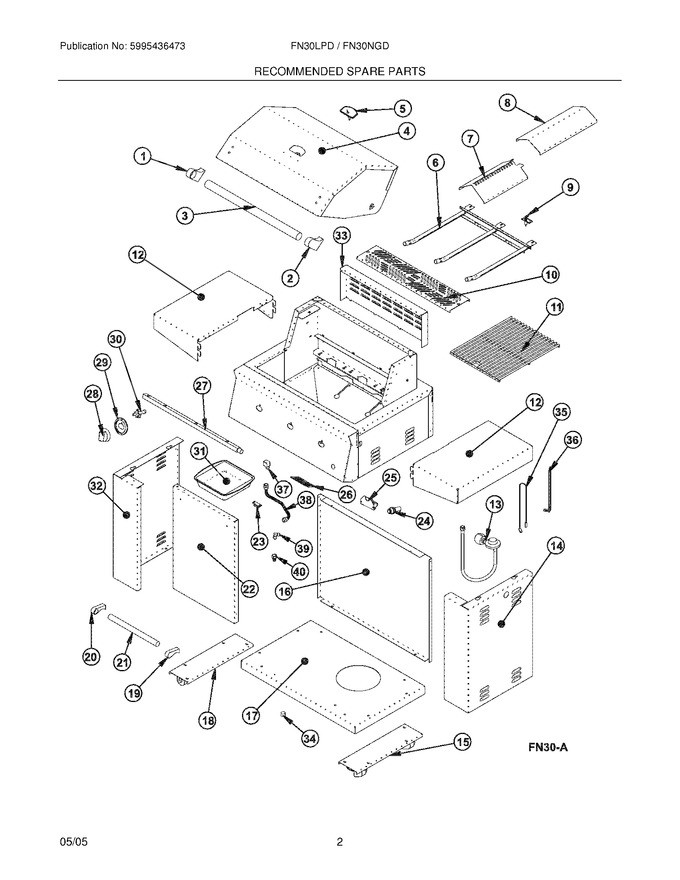

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304444388		Handle End,hood ,left				$ 48.51
2	5304444390		Handle End,hood ,right		Appelez-nous	-
3	5304444452		Handle,hood		Appelez-nous	-
4	5304444457		Hood,grill		Appelez-nous	-
7	5304444398		Flavor Grid,igniter Cover ,bottom ,angle				$ 370.83
8	5304444399		Flavor Grid,burner Cover ,top ,angle				$ 499.38
10	5304444461		Shelf,warming Rack		Appelez-nous	-
11	5304444459		Grate,main Burner		Appelez-nous	-
12	5304444437		Shelf,left Side		Appelez-nous	-
14	5304444416		Panel,cart ,right Side		Appelez-nous	-
15	5304444418		Channel,wheel ,swivel		Appelez-nous	-
16	5304444454		Panel,cart ,back		Appelez-nous	-
17	5304444455		Base,cart		Appelez-nous	-
18	5304445083		Channel,wheel ,fixed		Appelez-nous	-
19	5304444426		Handle End,door ,right		Appelez-nous	-
20	5304444425		Handle End,door ,left		Appelez-nous	-
21	5304444463		Handle,door ,12.525 Inch		Appelez-nous	-
22	5304444456		Door,cart		Appelez-nous	-
23	5304444391		Magnet,door				$ 52.55
24	5304444404		Housing,igniter Battery		Appelez-nous	-
26	5304445082		Panel,igniter Access		Appelez-nous	-
28	5304444405		Knob,burner				$ 53.34
29	5304444406		Bezel,knob				$ 51.03
31	5304444438		Tray,drip Pan				$ 60.16
32	5304444427		Panel,cart ,left Side		Appelez-nous	-
33	5304444458		Cover,infrared Burner		Appelez-nous	-
34	5304444419		Door Stop		Appelez-nous	-
F13	5304444424		Regulator,ng				$ 205.84
F25	5304444642		Igniter,2-pole ,no Ground ,with Bracket		Appelez-nous	-
F27	5304445085		Manifold		Appelez-nous	-
F30	5304445070		Valve,burner ,main/side ,ng		Appelez-nous	-
F35	5304444431		Wire,igniter ,positive				$ 58.70
F36	5304444432		Wire,igniter ,negative				$ 62.37
F37	5304447621		Elbow,gas Fitting ,manifold/hose		Appelez-nous	-
F38	5304446174		Hose,gas ,10`` ,main Supply				$ 124.54
F39	5304447623		Elbow,main Connection		Appelez-nous	-
F40	5304447624		Fitting,main Connection		Appelez-nous	-
F5	5304444392		Guage,temperature				$ 151.38
F6	5304444460		Burner,main ,3 Cell				$ 517.56
F9	5304444439		Electrode,main Burner				$ 148.05
NI	5304445048		Screw,bezel/valve		Appelez-nous	-
NI	5304444446		Screw,hood Handle End		Appelez-nous	-
NI	5304444447		Screw,self-tapping				$ 11.03
NI	5304444449		Wire,igniter ,main Burner ,left & Right		Appelez-nous	-
NI	5304444441		Bolt,valve/manifold		Appelez-nous	-
NI	5304444442		Bolt,wheel & Cart		Appelez-nous	-
NI	5304444443		Nut,door ,bottom Pivot		Appelez-nous	-
NI	5304444444		Screw,door ,bottom Pivot		Appelez-nous	-
