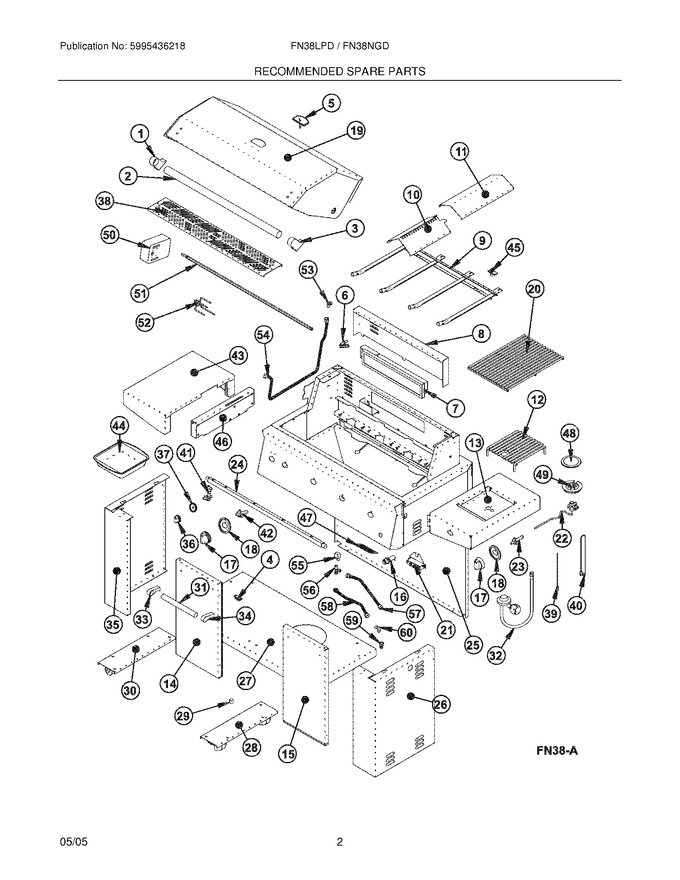

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304444388		Handle End,hood ,left				$ 48.51
2	5304444389		Handle,hood ,32 Inch		Appelez-nous	-
3	5304444390		Handle End,hood ,right		Appelez-nous	-
4	5304444391		Magnet,door				$ 52.55
8	5304445084		Cover,infrared Burner		Appelez-nous	-
10	5304444398		Flavor Grid,igniter Cover ,bottom ,angle				$ 370.83
11	5304444399		Flavor Grid,burner Cover ,top ,angle				$ 499.38
12	5304444400		Grate,side Burner				$ 234.27
13	5304444401		Shelf,side Burner		Appelez-nous	-
14	5304444420		Door,cart ,left		Appelez-nous	-
15	5304444440		Door,cart ,right		Appelez-nous	-
16	5304444404		Housing,igniter Battery		Appelez-nous	-
17	5304444405		Knob,burner				$ 53.34
18	5304444406		Bezel,knob				$ 51.03
19	5304444407		Hood,grill		Appelez-nous	-
20	5304444408		Grate,main Burner		Appelez-nous	-
25	5304444415		Panel,cart ,back		Appelez-nous	-
26	5304444416		Panel,cart ,right Side		Appelez-nous	-
27	5304444417		Base,cart		Appelez-nous	-
28	5304444418		Channel,wheel ,swivel		Appelez-nous	-
29	5304444419		Door Stop		Appelez-nous	-
30	5304445083		Channel,wheel ,fixed		Appelez-nous	-
31	5304444421		Handle,door ,9.375 Inch		Appelez-nous	-
33	5304444425		Handle End,door ,left		Appelez-nous	-
34	5304444426		Handle End,door ,right		Appelez-nous	-
35	5304444427		Panel,cart ,left Side		Appelez-nous	-
36	5304444428		Knob,infrared Burner				$ 88.93
37	5304444429		Bezel,infrared Knob				$ 39.90
38	5304444430		Shelf,warming Rack				$ 333.27
43	5304445086		Shelf,left Side ,folding		Appelez-nous	-
44	5304444438		Tray,drip Pan				$ 60.16
46	5304445090		Bracket,folding Shelf		Appelez-nous	-
47	5304445082		Panel,igniter Access		Appelez-nous	-
48	5304444402		Cap,side Burner				$ 50.33
49	5304444403		Burner Head,side Burner		Appelez-nous	-
51	5304445091		Spit,rotisserie		Appelez-nous	-
52	5304444551		Fork,rotisserie				$ 111.63
F21	5304444674		Igniter,4-pole ,no Ground ,with Bracket		Appelez-nous	-
F22	5304445088		Orifice,ng ,side Burner ,with Holder		Appelez-nous	-
F23	5304445079		Valve,side Burner ,ng		Appelez-nous	-
F24	5304444414		Manifold		Appelez-nous	-
F32	5304444424		Regulator,ng				$ 205.84
F39	5304444431		Wire,igniter ,positive				$ 58.70
F40	5304444432		Wire,igniter ,negative				$ 62.37
F41	5304445075		Valve,infrared Burner ,ng		Appelez-nous	-
F42	5304445070		Valve,burner ,main/side ,ng		Appelez-nous	-
F45	5304444439		Electrode,main Burner				$ 148.05
F5	5304444392		Guage,temperature				$ 151.38
F50	5304444548		Motor,rotisserie		Appelez-nous	-
F53	5304447642		Elbow,ng ,ir Burner Rear ,with Orifice				$ 63.92
F54	5304447646		Hose,gas ,infrared Burner ,rear		Appelez-nous	-
F55	5304447638		Elbow,gas Fitting ,manifold-to-t		Appelez-nous	-
F56	5304447639		Connector,t				$ 41.22
F57	5304447640		Hose,gas ,16`` ,to Side Burner		Appelez-nous	-
F58	5304446174		Hose,gas ,10`` ,main Supply				$ 124.54
F59	5304447624		Fitting,main Connection		Appelez-nous	-
F6	5304444393		Electrode,infrared Burner ,back				$ 130.57
F60	5304447623		Elbow,main Connection		Appelez-nous	-
F7	5304444453		Burner,infrared ,back		Appelez-nous	-
F9	5304444397		Burner,main				$ 528.03
NI	5304444449		Wire,igniter ,main Burner ,left & Right		Appelez-nous	-
NI	5304444696		Wire,igniter ,side Burner ,rear		Appelez-nous	-
NI	5304444441		Bolt,valve/manifold		Appelez-nous	-
NI	5304444442		Bolt,wheel & Cart		Appelez-nous	-
NI	5304444443		Nut,door ,bottom Pivot		Appelez-nous	-
NI	5304444444		Screw,door ,bottom Pivot		Appelez-nous	-
NI	5304445048		Screw,bezel/valve		Appelez-nous	-
NI	5304444446		Screw,hood Handle End		Appelez-nous	-
NI	5304444447		Screw,self-tapping				$ 11.03
NI	5304444661		Wire,igniter ,infrared Burner		Appelez-nous	-
