SELECT A DIAGRAM
01 - Door Assembly
02 - Pump Assembly

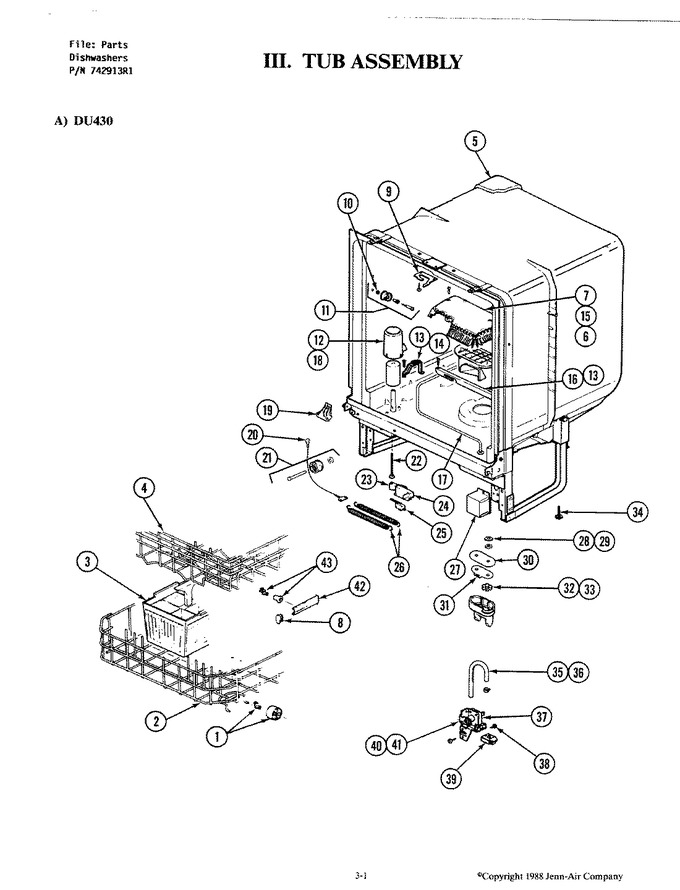

03 - Tub Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2955-0008 | Roller Assy. (rear Lower) |
|
- | |||||
| 1 | 2955-0007 | Roller Assembly,lower Front |
|
$ 27.81 | |||||
| 2 | 793078 | Roller, Assembly Lower |
|
- | |||||
| 3 | Y03000021 | Basket, Silverware |
|
- | |||||
| 4 | 793589 | Rack Assembly Upper (Replaces: 793072) |
|
$ 356.73 | |||||
| 5 | 2585-0001 | Insulation |
|
- | |||||
| 6 | 3005-0034 | Screw |
|
- | |||||
| 7 | 2275-0008 | Cover, Sump Inlet |
|
- | |||||
| 8 | 2355-0002 | End Cap, Rack Slide |
|
- | |||||
| 9 | 03000001 | Screw |
|
- | |||||
| 9 | 2645-0005 | Keeper-latch |
|
- | |||||
| 10 | 3280-0003 | Washer |
|
- | |||||
| 11 | 2955-0009 | Roller & Stud Assembly |
|
- | |||||
| 12 | 2275-0009 | Float, Dome |
|
- | |||||
| 13 | 3005-0115 | Screw |
|
- | |||||
| 14 | 03000078 | Support, Heater (front) |
|
- | |||||
| 15 | 2205-0003 | Cap, Sump |
|
- | |||||
| 16 | 03000079 | Support, Heater (rear) |
|
- | |||||
| 17 | 2350-0002 | Element, Heater |
|
- | |||||
| 18 | 2410-0002 | Float, Flood |
|
- | |||||
| 19 | 2045-0005 | Baffle, Tub (rt) |
|
- | |||||
| 19 | 2045-0006 | Baffle, Tub (lt) |
|
- | |||||
| 20 | 2190-0001 | Cable |
|
- | |||||
| 21 | 2955-0010 | Pulley & Shaft |
|
- | |||||
| 22 | 3085-0001 | Stem, Float |
|
- | |||||
| 23 | 2145-0026 | Bracket, Switch |
|
- | |||||
| 24 | 2275-0020 | Cover |
|
- | |||||
| 25 | 3135-0005 | Switch, Float |
|
- | |||||
| 26 | 3070-0016 | Door, Spring (yellow) |
|
- | |||||
| 26 | 3070-0006 | Door,spring (blue) |
|
- | |||||
| 27 | 2275-0002 | Cover, Junction Box |
|
- | |||||
| 28 | 3280-0009 | Washer |
|
- | |||||
| 29 | 2480-0003 | Grommet |
|
- | |||||
| 30 | 2590-0005 | Insulator |
|
- | |||||
| 31 | 2845-0023 | Bracket, Barrier |
|
- | |||||
| 32 | 2735-0009 | Nut |
|
- | |||||
| 33 | 2080-0002 | Barrier, Element |
|
- | |||||
| 34 | 2650-0002 | Screw, Leveling |
|
- | |||||
| 35 | 2530-0004 | Hose |
|
- | |||||
| 36 | 2235-0004 | Clamp, Fill Hose |
|
- | |||||
| 37 | WD15X93 | Valve, Water (Replaces: 3255-0009) |
|
$ 64.56 | |||||
| 38 | WP489483 | Screw (Replaces: 3005-0076) |
|
$ 10.27 | |||||
| 39 | 2590-0004 | Insulator |
|
- | |||||
| 40 | WP3351614 | Screw (Replaces: 3005-0046) |
|
Immediately | $ 6.57 | ||||
| 41 | 2250-0002 | Solenoid, Assembly |
|
- | |||||
| 42 | 3045-0002 | Slide, Rack |
|
- | |||||
| 43 | 2955-0011 | Roller & Stud |
|
- |
