01 - Control Panel

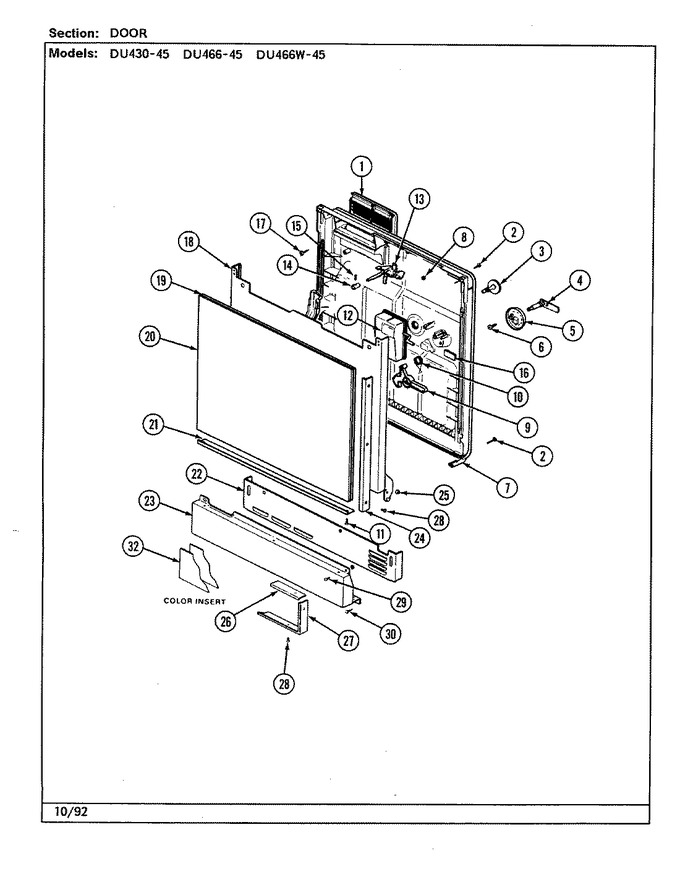

02 - Door
03 - Pump & Motor
04 - Rack
05 - Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3265-0002 | Vent Assy. | - |
|
- | ||||
| 2 | 3005-0028 | Screw | - |
|
- | ||||
| 3 | Y03000003 | Cap, Fill | - |
|
- | ||||
| 4 | 3020-0007 | Shaft, Det. Cup | - |
|
- | ||||
| 5 | 2275-0005 | Cover, Detergent Cup | - |
|
$ 43.29 | ||||
| 6 | 3005-0074 | Screw | - |
|
- | ||||
| 7 | 2450-0016 | Gasket | - |
|
- | ||||
| 8 | Y03000080 | Panel, Inner Door | - |
|
- | ||||
| 9 | 2645-0004 | Latch, Detergent Cup | - |
|
- | ||||
| 10 | 3070-0005 | Spring, Detergent Cup | - |
|
- | ||||
| 11 | 3005-0014 | Screw | - |
|
- | ||||
| 12 | Y03000002 | Injector, Rinse | - |
|
- | ||||
| 13 | Y03000191 | Latch, Assembly | - |
|
- | ||||
| 14 | 2615-0021 | Knob, Latch Handle | - |
|
- | ||||
| 15 | 3005-0029 | Screw | - |
|
- | ||||
| 16 | 2307-0001 | Deflector | - |
|
- | ||||
| 17 | 3005-0032 | Screw | - |
|
- | ||||
| 18 | Y03000093 | Door &hinge Assembly (outer) | - |
|
- | ||||
| 20 | 03000036 | Panel (b/w) | - |
|
- | ||||
| 21 | 03000094 | Trim Bottom Door | - |
|
- | ||||
| 22 | Y03000037 | Toe Kick | - |
|
- | ||||
| 23 | Y03000189 | Panel, Access | - |
|
- | ||||
| 24 | Y03000097 | Door Trim Side | - |
|
- | ||||
| 25 | 2095-0002 | Bearing, Hinge Arm | - |
|
- | ||||
| 26 | 03000038 | Trim, Top(service Panel) | - |
|
- | ||||
| 27 | Y03000033 | Trim Side/bottom-sides | - |
|
- | ||||
| 28 | W11233072 | Screw (Replaces: Y03000188) | - |
|
Immediately | $ 13.25 | |||
| 29 | 3005-0025 | Screw | - |
|
- | ||||
| 30 | 61002031 | Screw (Replaces: 3005-0033) | - |
|
$ 43.43 | ||||
| 32 | 2580-0037 | Insert,panel Black/almond | - |
|
- |
