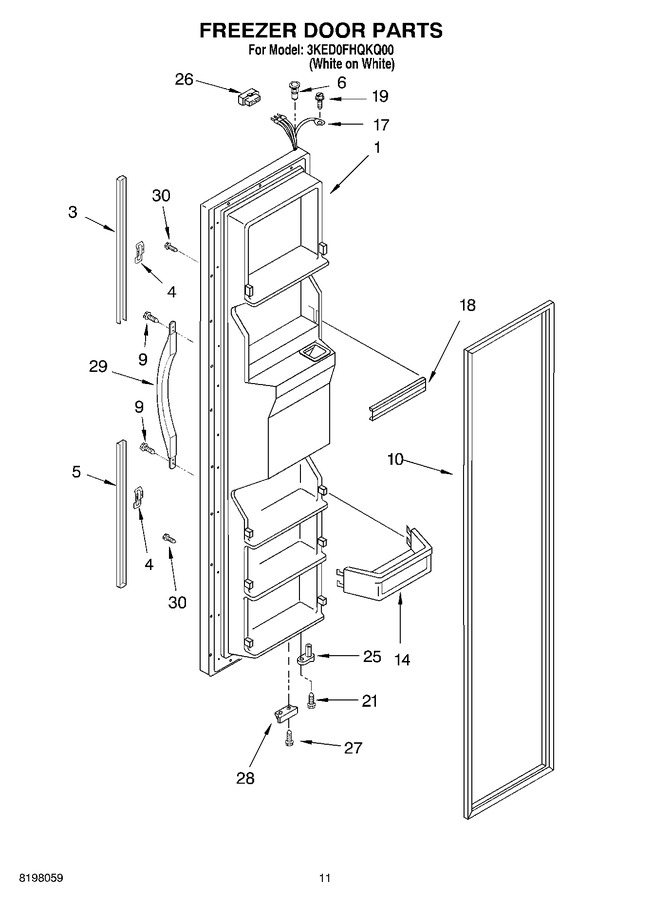

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214700W		Freezer Door (white)		Appelez-nous	-
3	2194971W		Trim, Handle-top (white)				$ 44.85
4	WP2195327		Clip   (Replaces: 2195327)				$ 6.99
5	2194969W		Trim, Handle- Bottom (white)				$ 5.51
6	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
9	WP489491		Screw   (Replaces: 489491)				$ 6.57
10	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 291.24
14	WP2156021		Trim, Door Shelf (4)   (Replaces: 2204070)				$ 59.79
17	2311642		Harness, Door   (Replaces: 2206602)				$ 205.94
18	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 21.84
19	WP489128		Screw   (Replaces: 8281149)				$ 10.26
21	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
25	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
26	WP2154473		Housing Connector   (Replaces: 2162412)				$ 22.35
27	WP489483		Screw   (Replaces: 489420)				$ 10.27
28	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 38.51
29	2186649W		Handle (white)				$ 70.49
30	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
