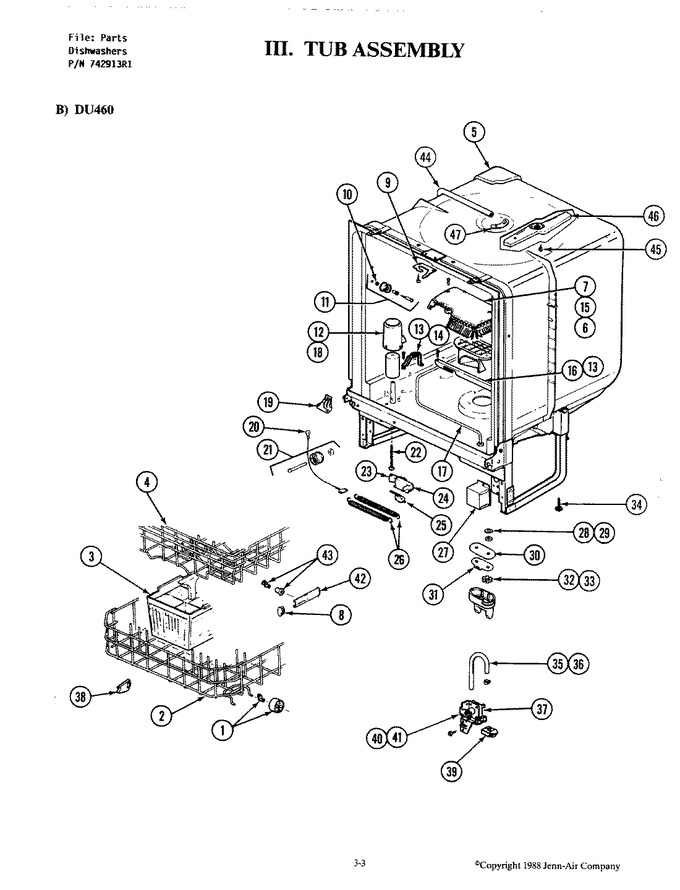

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 793080 | Roller,assembly Lower Front | 1 |
|
- | ||||
| 1 | 2955-0008 | Roller Assy. (rear Lower) | 2 |
|
- | ||||
| 1 | 2955-0007 | Roller Assembly,lower Front | 2 |
|
$ 27.81 | ||||
| 1 | 793079 | Roller Assembly,lower Front | 1 |
|
- | ||||
| 2 | 793078 | Roller, Assembly Lower | 1-2 |
|
- | ||||
| 3 | 793082 | Basket Silverware | 1-2 |
|
- | ||||
| 4 | 793071 | Rack Assembly Upper | 1 |
|
$ 143.98 | ||||
| 4 | WW03F00159 | Nut-strip (Replaces: 3120-0002) | 2 |
|
Immediately | $ 170.53 | |||
| 5 | 2585-0001 | Insulation | 2 |
|
- | ||||
| 5 | 793145 | Insulation, Tub | 1 |
|
- | ||||
| 6 | 793099 | Screw | 1 |
|
Immediately | $ 6.89 | |||
| 6 | 3005-0034 | Screw | 2 |
|
- | ||||
| 7 | 793057 | Cover, Sump Inlet | 1 |
|
- | ||||
| 7 | 2275-0008 | Cover, Sump Inlet | 2 |
|
- | ||||
| 8 | 793075 | Cap, End | 1 |
|
$ 311.89 | ||||
| 8 | 2355-0002 | End Cap, Rack Slide | 2 |
|
- | ||||
| 9 | 2645-0005 | Keeper-latch | 2 |
|
- | ||||
| 9 | 793005 | Keeper-latch | 1 |
|
Immediately | $ 260.67 | |||
| 10 | 3280-0003 | Washer | 2 |
|
- | ||||
| 10 | Y793027 | Washer, Stainless | 1 |
|
- | ||||
| 11 | DE81-07757A | Roller & Stud Assembly (Replaces: 793076) | 1 |
|
$ 77.18 | ||||
| 11 | 2275-0009 | Float, Dome | 2 |
|
- | ||||
| 12 | 793019 | Dome-float | 1 |
|
- | ||||
| 12 | 2275-0009 | Float, Dome | 2 |
|
- | ||||
| 13 | 793004 | Screw | 1 |
|
- | ||||
| 13 | 3005-0115 | Screw | 2 |
|
- | ||||
| 14 | 793014 | Support,front | 1 |
|
- | ||||
| 14 | 03000078 | Support, Heater (front) | 2 |
|
- | ||||
| 15 | 793059 | Cap-sump | 1 |
|
- | ||||
| 15 | 2205-0003 | Cap, Sump | 2 |
|
- | ||||
| 16 | 793015 | Support Heater, Rear | 1 |
|
- | ||||
| 16 | 03000079 | Support, Heater (rear) | 2 |
|
- | ||||
| 17 | 793007 | Heater | 1 |
|
- | ||||
| 17 | 2350-0002 | Element, Heater | 2 |
|
- | ||||
| 18 | 2410-0002 | Float, Flood | 2 |
|
- | ||||
| 18 | 793020 | Float-flood | 1 |
|
- | ||||
| 19 | 793001 | Baffle, Corner, L.h. | 1 |
|
- | ||||
| 19 | 2045-0005 | Baffle, Tub (rt) | 2 |
|
- | ||||
| 19 | 793000 | Baffle, Corner R.h. | 1 |
|
- | ||||
| 19 | 2045-0006 | Baffle, Tub (lt) | 2 |
|
- | ||||
| 20 | 793133 | Cable | 1 |
|
- | ||||
| 20 | 2190-0001 | Cable | 2 |
|
- | ||||
| 21 | 2955-0010 | Pulley & Shaft | 2 |
|
- | ||||
| 21 | 793134 | Kit, Pulley & Shaft | 1 |
|
- | ||||
| 22 | 793021 | Stem-float | 1 |
|
- | ||||
| 22 | 3085-0001 | Stem, Float | 2 |
|
- | ||||
| 23 | 793022 | Bracket, Switch | 1 |
|
- | ||||
| 23 | 2145-0026 | Bracket, Switch | 2 |
|
- | ||||
| 24 | 2275-0020 | Cover | 2 |
|
- | ||||
| 24 | QT230BLN | Cover (Replaces: 793023) | 1 |
|
$ 278.90 | ||||
| 25 | 3135-0005 | Switch, Float | 2 |
|
- | ||||
| 25 | 793050 | Switch | 1 |
|
- | ||||
| 26 | 793002 | Door, Spring (blue) | 1 |
|
- | ||||
| 26 | 3070-0016 | Door, Spring (yellow) | 2 |
|
- | ||||
| 26 | 3070-0006 | Door,spring (blue) | 2 |
|
- | ||||
| 26 | 793003 | Door, Spring (yellow) | 1 |
|
- | ||||
| 27 | 793149 | Cover, Junction Box | 1 |
|
- | ||||
| 27 | 2275-0002 | Cover, Junction Box | 2 |
|
- | ||||
| 28 | 793009 | Washer, Element | 1 |
|
- | ||||
| 28 | 3280-0009 | Washer | 2 |
|
- | ||||
| 29 | 2480-0003 | Grommet | 2 |
|
- | ||||
| 29 | 793013 | Grommet-heater | 1 |
|
- | ||||
| 30 | 2590-0005 | Insulator | 2 |
|
- | ||||
| 30 | 793011 | Insulator | 1 |
|
- | ||||
| 31 | 2845-0023 | Bracket, Barrier | 2 |
|
- | ||||
| 31 | 793010 | Bracket, Barrier | 1 |
|
- | ||||
| 32 | QT230AAN | Nut-heater (Replaces: 793008) | 1 |
|
$ 278.90 | ||||
| 32 | 2735-0009 | Nut | 2 |
|
- | ||||
| 33 | 2080-0002 | Barrier, Element | 2 |
|
- | ||||
| 33 | 793012 | Barrier, Element | 1 |
|
- | ||||
| 34 | 793006 | Leg-leveling | 1 |
|
- | ||||
| 34 | 2650-0002 | Screw, Leveling | 2 |
|
- | ||||
| 35 | 793146 | Hose | 1 |
|
- | ||||
| 35 | 2530-0004 | Hose | 2 |
|
- | ||||
| 36 | 793083 | Clamp-hose | 1 |
|
- | ||||
| 36 | 2235-0004 | Clamp, Fill Hose | 2 |
|
- | ||||
| 37 | WD15X93 | Valve, Inlet Complete (Replaces: 793148) | 1 |
|
$ 64.56 | ||||
| 37 | WD15X93 | Valve, Water (Replaces: 3255-0009) | 2 |
|
$ 64.56 | ||||
| 38 | 793073 | Bumper 460 | 1 |
|
- | ||||
| 38 | W10124350 | Not Required Part Or See Note | 2 |
|
- | ||||
| 39 | 793053 | Valve | 1 |
|
- | ||||
| 39 | 2590-0004 | Insulator | 2 |
|
- | ||||
| 40 | WP3351614 | Screw (Replaces: 793150) | 1 |
|
Immediately | $ 6.57 | |||
| 40 | WP3351614 | Screw (Replaces: 3005-0046) | 2 |
|
Immediately | $ 6.57 | |||
| 41 | 793147 | Slide, Rack | 1 |
|
- | ||||
| 41 | 2250-0002 | Solenoid, Assembly | 2 |
|
- | ||||
| 42 | 3045-0002 | Slide, Rack | 2 |
|
- | ||||
| 42 | 793074 | Rack Slide | 1 |
|
- | ||||
| 43 | Y793077 | Roller & Stud | 1 |
|
- | ||||
| 43 | 2955-0011 | Roller & Stud | 2 |
|
- | ||||
| 44 | 793069 | Hose,power Shower | 1 |
|
- | ||||
| 44 | 2530-0014 | Hose, Power Shower | 2 |
|
- | ||||
| 45 | 3005-0030 | Screw | 2 |
|
- | ||||
| 45 | 793067 | Screw, 12x5/8a | 1 |
|
- | ||||
| 46 | 2020-0003 | Arm, Spray | 2 |
|
- | ||||
| 46 | 793068 | Power Shower Assembly | 1 |
|
- | ||||
| 47 | WW03F00159 | Nut-strip (Replaces: 3120-0002) | 2 |
|
Immediately | $ 170.53 | |||
| 47 | 793070 | Nut-strip | 1 |
|
- |
