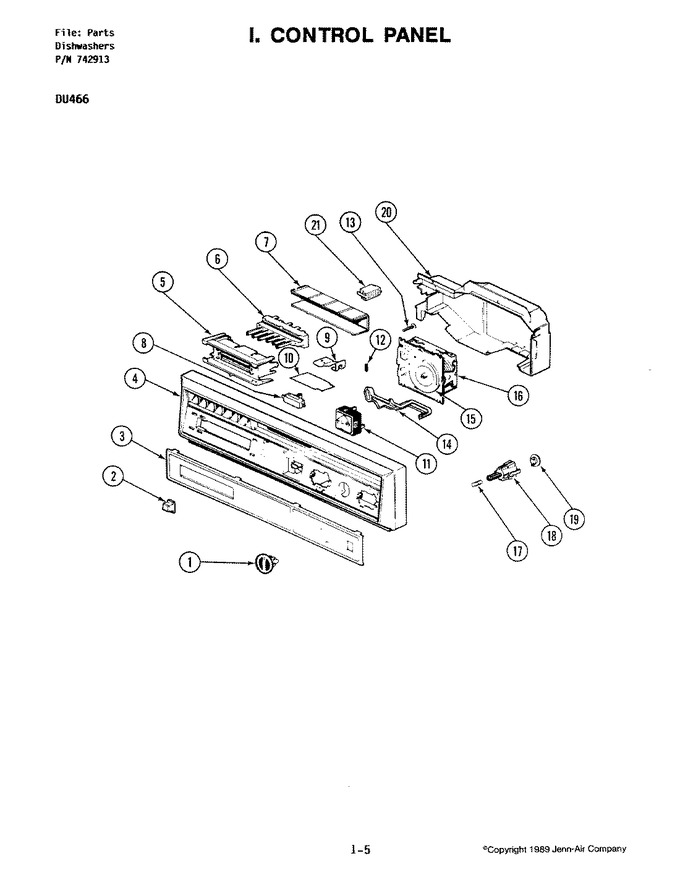

01 - Control Panel (du466-01/02)
02 - Door Assembly (du466-01/02)
03 - Pump Assembly (du466-01/02)
04 - Tub Assembly (du466-01/02)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2615-0020 | Knob, Timer Assembly | 1-2 |
|
- | ||||
| 2 | 2170-0020 | Pushbutton | 1-2 |
|
- | ||||
| 3 | 2580-0052 | Trim, Switch | 1-2 |
|
- | ||||
| 4 | 3230-0006 | Escutcheon | 1-2 |
|
- | ||||
| 5 | 2940-0007 | Retainer, Switch | 1-2 |
|
- | ||||
| 6 | 3135-0075 | Switch, Push Button | 1-2 |
|
- | ||||
| 7 | 2275-0006 | Cover, Pushbutton Switch | 1-2 |
|
- | ||||
| 8 | 3135-0006 | Switch, Interlock | 1-2 |
|
- | ||||
| 9 | 3135-0035 | Switch, Leaf Assembly | 1-2 |
|
- | ||||
| 10 | 3030-0006 | Shield, Switch | 1-2 |
|
- | ||||
| 11 | 3135-0004 | Switch, Cycling | 1-2 |
|
- | ||||
| 12 | 3070-0007 | Spring, Det. Trip | 1-2 |
|
- | ||||
| 13 | 3005-0032 | Screw | 1-2 |
|
- | ||||
| 14 | 2660-0003 | Lever, Detergent Timer | 1-2 |
|
- | ||||
| 15 | 2195-0010 | Timer, Cam | 1-2 |
|
- | ||||
| 16 | 3170-0020 | Timer | 1-2 |
|
- | ||||
| 17 | 2940-0015 | Retainer, Spring | 1-2 |
|
- | ||||
| 18 | 2940-0016 | Retainer,thermostat | 1-2 |
|
- | ||||
| 19 | 3160-0012 | Thermostat, Water Heater | 1-2 |
|
- | ||||
| 20 | 2275-0034 | Cover, Electrical | 1-2 |
|
- | ||||
| 21 | 3154-0001 | Terminal | 1-2 |
|
- |
