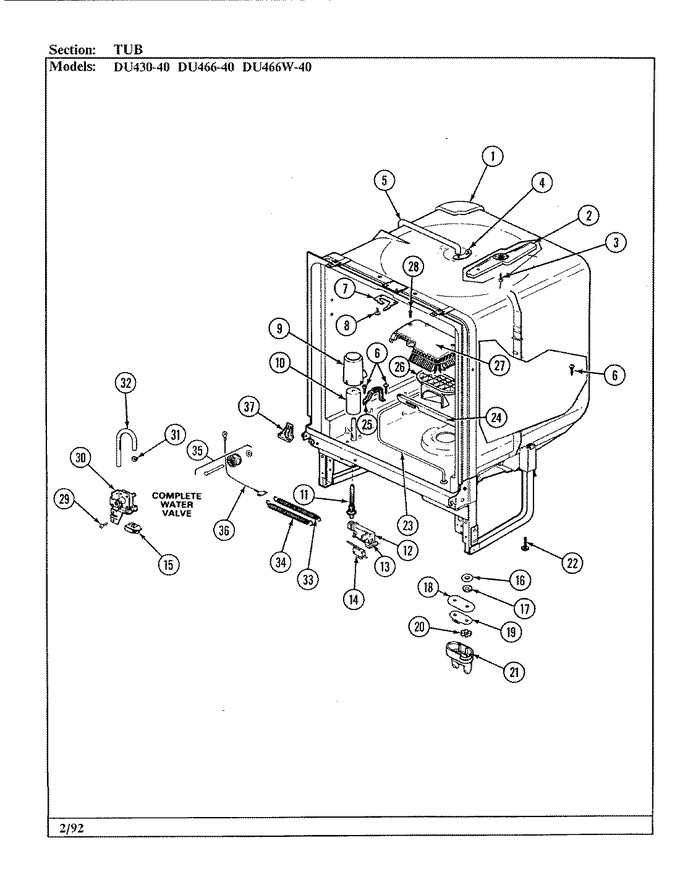

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2585-0001 | Insulation | 1 |
|
- | ||||
| 2 | 2020-0003 | Arm, Spray | 1 |
|
- | ||||
| 3 | 3005-0030 | Screw | 1 |
|
- | ||||
| 4 | WW03F00159 | Nut-strip (Replaces: 3120-0002) | 1 |
|
Immediately | $ 170.53 | |||
| 5 | 2530-0014 | Hose, Power Shower | 1 |
|
- | ||||
| 6 | 3005-0115 | Screw | 1 |
|
- | ||||
| 7 | 2645-0005 | Keeper-latch | 1 |
|
- | ||||
| 8 | 03000001 | Screw | 1 |
|
- | ||||
| 9 | 2275-0009 | Float, Dome | 1 |
|
- | ||||
| 10 | 2410-0002 | Float, Flood | 1 |
|
- | ||||
| 11 | 3085-0001 | Stem, Float | 1 |
|
- | ||||
| 12 | 2145-0026 | Bracket, Switch | 1 |
|
- | ||||
| 13 | 2275-0020 | Cover | 1 |
|
- | ||||
| 14 | 3135-0005 | Switch, Float | 1 |
|
- | ||||
| 15 | 2590-0005 | Insulator | 1 |
|
- | ||||
| 16 | 3280-0009 | Washer | 1 |
|
- | ||||
| 17 | 2480-0003 | Grommet | 1 |
|
- | ||||
| 18 | 2590-0005 | Insulator | 1 |
|
- | ||||
| 19 | 2145-0025 | Barrier, Bracket | 1 |
|
- | ||||
| 20 | 2735-0009 | Nut | 1 |
|
- | ||||
| 21 | 2080-0002 | Barrier, Element | 1 |
|
- | ||||
| 22 | 2650-0002 | Screw, Leveling | 1 |
|
- | ||||
| 23 | 2350-0002 | Element, Heater | 1 |
|
- | ||||
| 24 | 03000079 | Support, Heater (rear) | 1 |
|
- | ||||
| 25 | 03000078 | Support, Heater (front) | 1 |
|
- | ||||
| 26 | 2205-0003 | Cap, Sump | 1 |
|
- | ||||
| 27 | 2275-0008 | Cover, Sump Inlet | 1 |
|
- | ||||
| 28 | 3005-0034 | Screw | 1 |
|
- | ||||
| 29 | WP3351614 | Screw (Replaces: 3005-0046) | 1 |
|
Immediately | $ 6.57 | |||
| 30 | 2250-0002 | Solenoid, Assembly | 1 |
|
- | ||||
| 30 | WD15X93 | Valve, Water (Replaces: 3255-0009) | 1 |
|
$ 64.56 | ||||
| 31 | 2235-0004 | Clamp, Fill Hose | 1 |
|
- | ||||
| 32 | 2530-0004 | Hose | 1 |
|
- | ||||
| 33 | 3070-0006 | Door,spring (blue) | 1 |
|
- | ||||
| 34 | 3070-0016 | Door, Spring (yellow) | 1 |
|
- | ||||
| 35 | 2955-0010 | Pulley & Shaft | 1 |
|
- | ||||
| 36 | Y03000108 | Cable & Eyelet Assy | 1 |
|
$ 41.91 | ||||
| 37 | 2275-0002 | Cover, Junction Box | 1 |
|
- | ||||
| 37 | 2045-0006 | Baffle, Tub (lt) | 1 |
|
- | ||||
| 37 | 2045-0005 | Baffle, Tub (rt) | 1 |
|
- |
