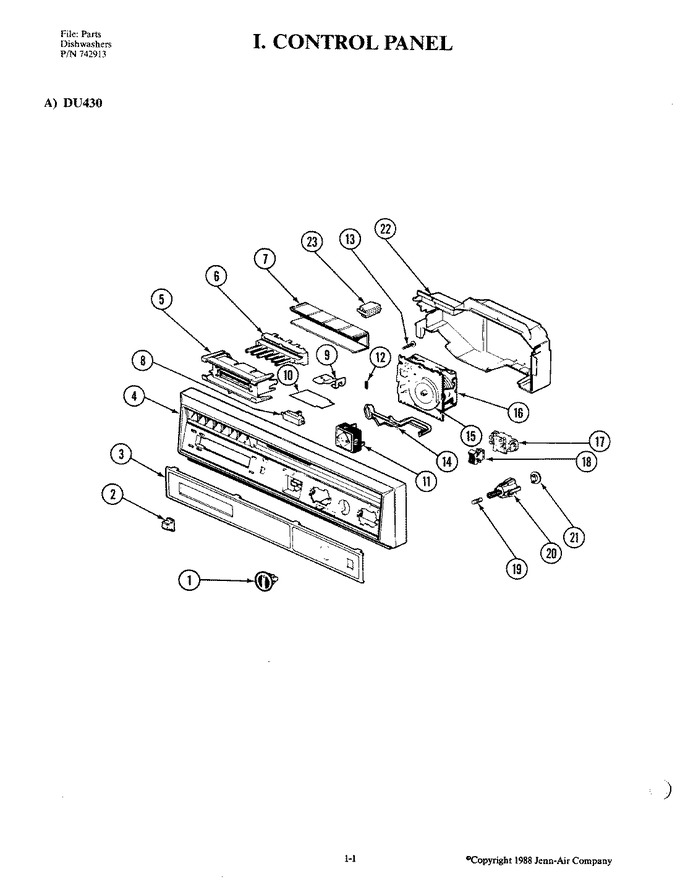

01 - Control Panel (du466-20/du466w-20)


02 - Door Assembly (du460-20/du460w-20)


03 - Pump Assembly (du466-20/du466w-20)


04 - Tub Assembly (du466-20/du466w-20)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	03000041		Knob, Timer Assembly		Appelez-nous	-
2	03000042		Pushbutton				$ 4.33
3	03000040		Trim Switch		Appelez-nous	-
4	03000004		Escutcheon		Appelez-nous	-
5	2940-0007		Retainer, Switch		Appelez-nous	-
6	3135-0075		Switch, Push Button		Appelez-nous	-
7	2275-0006		Cover, Pushbutton Switch		Appelez-nous	-
8	3135-0006		Switch, Interlock		Appelez-nous	-
9	3135-0035		Switch, Leaf Assembly		Appelez-nous	-
10	3030-0006		Shield, Switch		Appelez-nous	-
11	3135-0004		Switch, Cycling		Appelez-nous	-
12	3070-0007		Spring, Det. Trip		Appelez-nous	-
13	3005-0032		Screw		Appelez-nous	-
14	2660-0003		Lever, Detergent Timer		Appelez-nous	-
15	2195-0010		Timer, Cam		Appelez-nous	-
16	3170-0020		Timer		Appelez-nous	-
17	W10124350		Not Required Part Or See Note		Appelez-nous	-
18	W10124350		Not Required Part Or See Note		Appelez-nous	-
19	2940-0015		Retainer, Spring		Appelez-nous	-
20	793018		Retainer, Thermostat		Appelez-nous	-
21	3160-0012		Thermostat, Water Heater		Appelez-nous	-
22	2275-0034		Cover, Electrical		Appelez-nous	-
23	Y03000072		Terminal, Housing		Appelez-nous	-
23	Y03000076		Terminal		Appelez-nous	-
