SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump Assembly


04 - Rack


05 - Tub

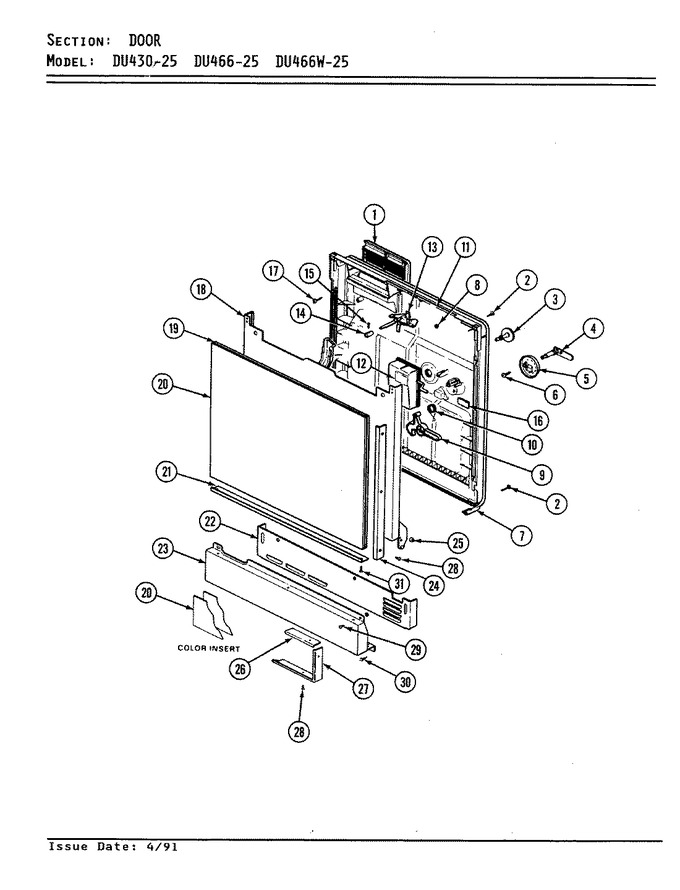

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3265-0002		Vent Assy.		Appelez-nous	-
2	3005-0028		Screw		Appelez-nous	-
3	2205-0008		Cap, Fill		Appelez-nous	-
4	3020-0008		Shaft & Handle		Appelez-nous	-
5	2275-0005		Cover, Detergent Cup				$ 43.29
6	3005-0113		Screw		Appelez-nous	-
7	2450-0025		Gasket		Appelez-nous	-
8	2800-0004		Panel, Inner Door		Appelez-nous	-
9	2645-0004		Latch, Detergent Cup		Appelez-nous	-
10	3070-0005		Spring, Detergent Cup		Appelez-nous	-
11	2075-0001		Bar, Door		Appelez-nous	-
12	Y03000002		Injector, Rinse		Appelez-nous	-
13	2645-0003		Latch Assembly		Appelez-nous	-
14	Y03000015		Knob Latch		Appelez-nous	-
15	3005-0029		Screw		Appelez-nous	-
16	Y03000097		Door Trim Side		Appelez-nous	-
17	3005-0032		Screw		Appelez-nous	-
18	Y03000093		Door &hinge Assembly (outer)		Appelez-nous	-
20	Y03000039		Insert Service Panel Bk/wh		Appelez-nous	-
20	03000036		Panel (b/w)		Appelez-nous	-
21	03000094		Trim Bottom Door		Appelez-nous	-
22	Y03000037		Toe Kick		Appelez-nous	-
23	3030-0001		Shield,drip		Appelez-nous	-
23	2800-0022		Lower Access Panel		Appelez-nous	-
24	Y03000097		Door Trim Side		Appelez-nous	-
25	2095-0002		Bearing, Hinge Arm		Appelez-nous	-
26	03000038		Trim, Top(service Panel)		Appelez-nous	-
27	Y03000033		Trim Side/bottom-sides		Appelez-nous	-
28	3005-0031		Screw		Appelez-nous	-
29	3005-0025		Screw		Appelez-nous	-
30	61002031		Screw   (Replaces: 3005-0033)				$ 43.43
31	3005-0014		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
