View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Pump & Motor

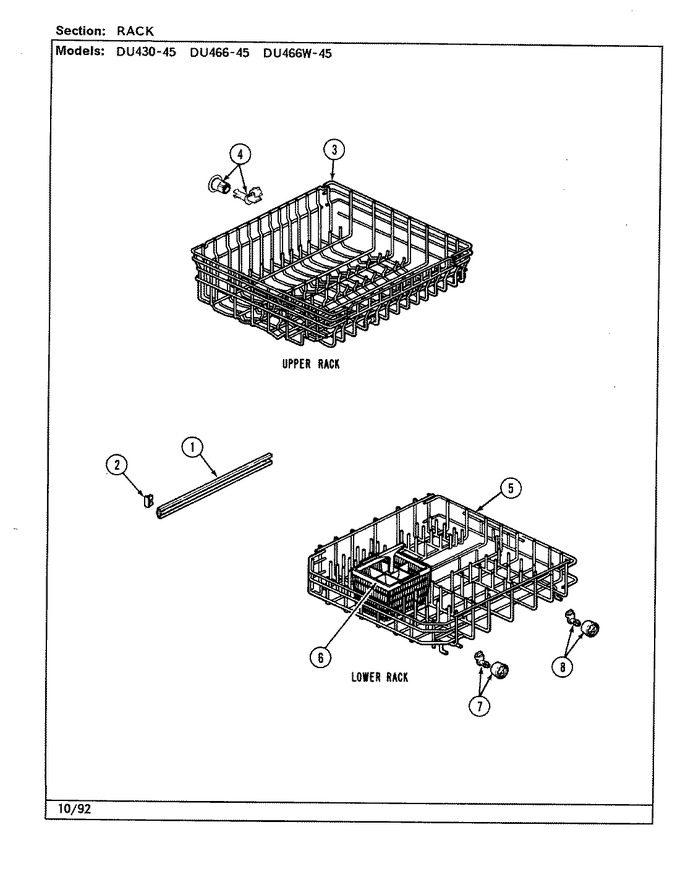

04 - Rack
05 - Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3045-0002 | Slide, Rack | - |
|
- | ||||
| 2 | 2355-0002 | End Cap, Rack Slide | - |
|
- | ||||
| 3 | 2905-0011 | Rack Assy. (upr) | - |
|
- | ||||
| 4 | 2955-0011 | Roller & Stud | - |
|
- | ||||
| 5 | 2905-0009 | Rack & Roller Assy. (lwr) | - |
|
- | ||||
| 6 | Y03000021 | Basket, Silverware | - |
|
- | ||||
| 7 | 2955-0007 | Roller Assembly,lower Front | - |
|
$ 27.81 | ||||
| 8 | 2955-0008 | Roller Assy. (rear Lower) | - |
|
- |
