SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

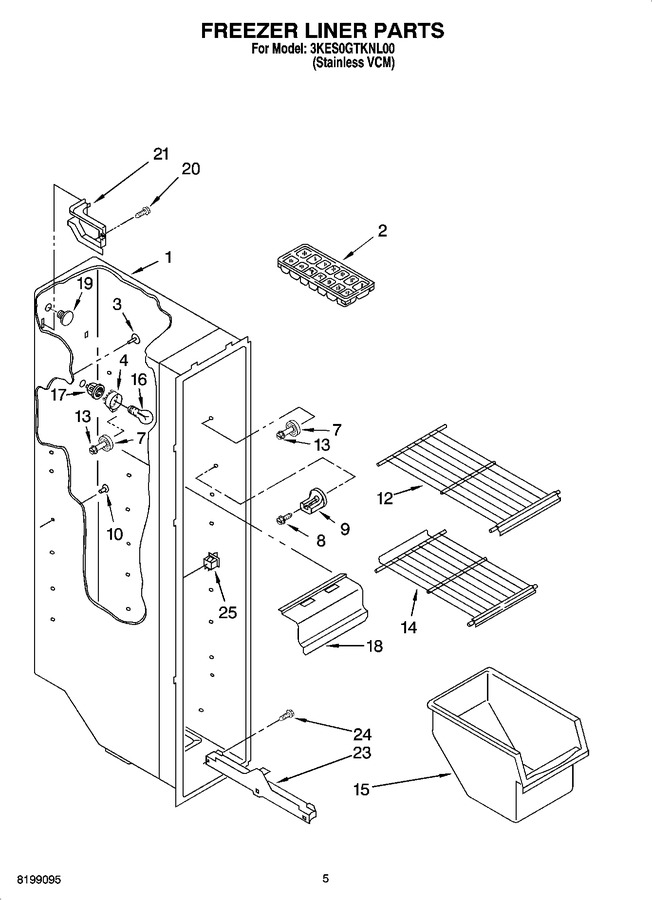

03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
4	2167012		Shroud, Light		Appelez-nous	-
7	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
8	W10142289		Screw   (Replaces: 3400893)				$ 9.61
9	2196207		Stud, Rear				$ 7.61
10	2176134		Grommet (10)				$ 5.83
12	2163612		Shelf		Appelez-nous	-
13	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
14	2174269		Shelf (1)		Appelez-nous	-
14	2174270		Shelf (2)		Appelez-nous	-
15	2171707		Freezer Bin		Appelez-nous	-
16	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
17	WPW10119935		Socket, Assembly   (Replaces: 2155597)				$ 106.16
18	WP2155595		Light Lens   (Replaces: 2155595)				$ 88.36
19	2223173		Plug, Fill Tube				$ 9.24
20	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.72
21	2160912		Cover, Wiring		Appelez-nous	-
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 130.12
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-
25	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 39.09

    View Diagram in Separate Window       Print Part List
