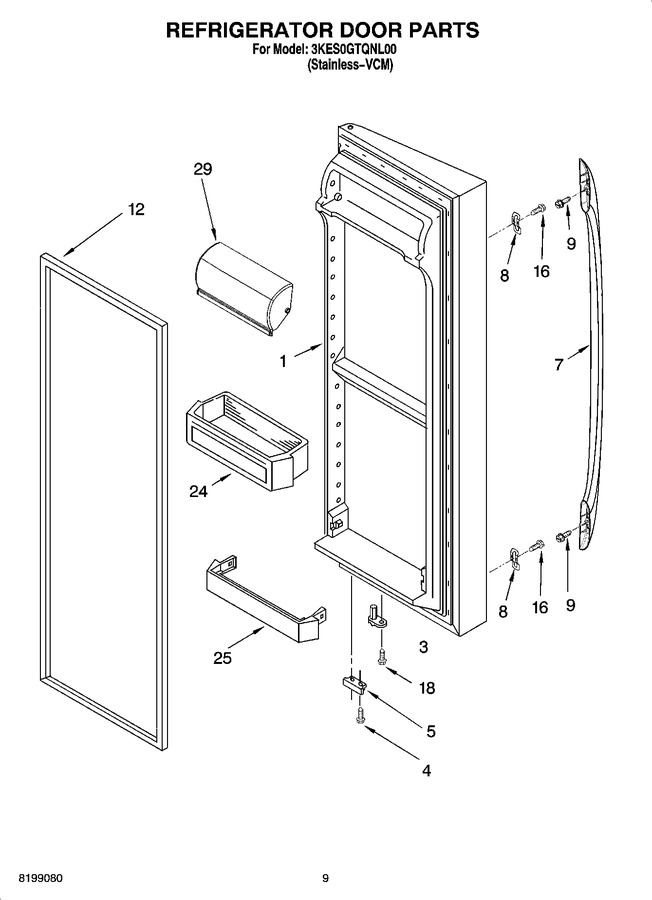

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2305969LB | Refrigerator Door (stainless-vcm) |
|
- | |||||
| 3 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 4 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 5 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 7 | 2305993B | Handle (black) |
|
$ 100.25 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 9 | 8533920 | Screw |
|
$ 5.27 | |||||
| 12 | 2159081 | Door Gasket, Magnetic (black) (Replaces: 2221311) |
|
$ 319.60 | |||||
| 16 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 18 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 24 | WP2187172 | Door Bin, Deep (3) (Replaces: 2187172) |
|
Immediately | $ 45.09 | ||||
| 25 | WP2177962K | Trivet (Replaces: 2177962) |
|
$ 81.09 | |||||
| 29 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 85.16 |
