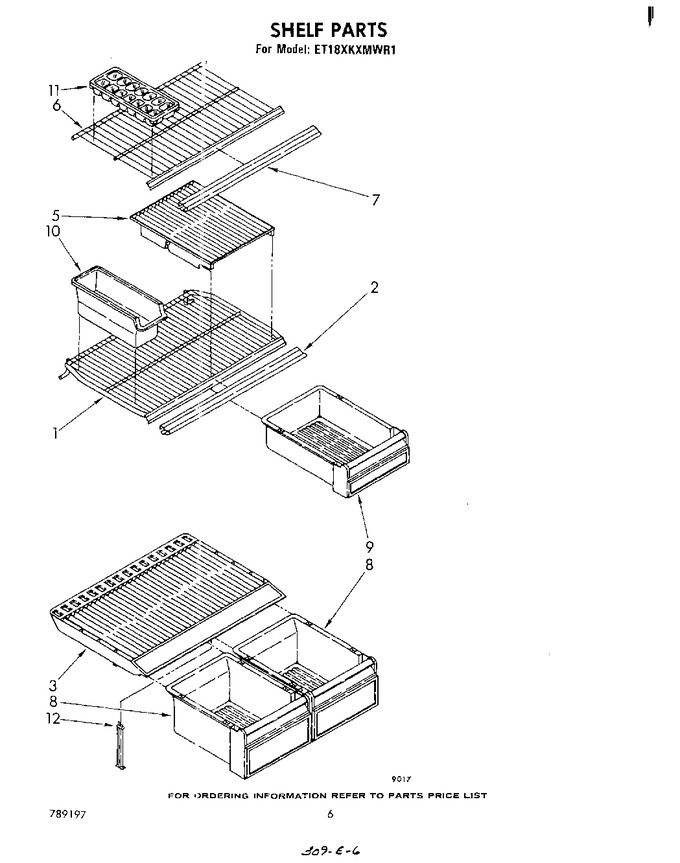

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 943719 | Shelf, Pullout (3) |
|
- | |||||
| 2 | 943718 | Trim, Shelf (front) |
|
- | |||||
| 3 | 943730 | Cover, Crisper |
|
- | |||||
| 5 | 1103634 | Cover, Meat Pan |
|
- | |||||
| 6 | 943725 | Shelf, Freezer |
|
- | |||||
| 7 | 943728 | Trim, Shelf (front) |
|
- | |||||
| 8 | 943736 | Pan, Crisper (2) |
|
- | |||||
| 9 | 942834 | Pan, Meat |
|
- | |||||
| 10 | WP982704 | Container, Utility (Replaces: 984899) |
|
$ 32.55 | |||||
| 11 | WP841180A | Tray, Ice (2) (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 12 | 1100462 | Support Post |
|
- |
