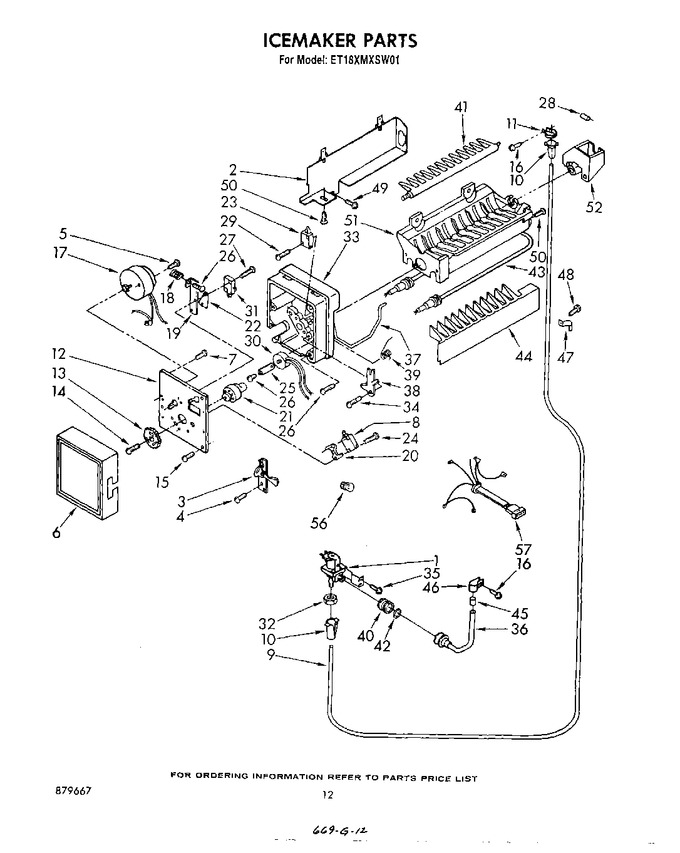

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4318047		Valve Assembly   (Replaces: 627910)			Immediately	$ 74.09
2	627751		Shield, Heat		Appelez-nous	-
3	627248		Lever & Plate Assembly		Appelez-nous	-
4	488622		Screw, 4-40 X 1/4		Appelez-nous	-
5	488361		Screw (use W/625846 Motor)		Appelez-nous	-
6	1100705		Cover		Appelez-nous	-
7	488542		Screw, Ground		Appelez-nous	-
8	627848		Switch, S.p.d.t.		Appelez-nous	-
9	W10823511		Tube, Water   (Replaces: 1108197)			Immediately	$ 32.41
10	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
11	WP488878		Tube Clamp   (Replaces: 488878)				$ 11.60
12	627740		Plate, Mounting		Appelez-nous	-
13	625914		Gear		Appelez-nous	-
14	488957		Screw		Appelez-nous	-
15	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 10.58
16	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
17	625846		Motor		Appelez-nous	-
18	627163		Spring		Appelez-nous	-
19	627024		Plate, Valve Switch		Appelez-nous	-
20	625834		Spacer, Holding Switch				$ 7.99
21	625913		Cam		Appelez-nous	-
22	627680		Insulator		Appelez-nous	-
23	625851		Switch, S.p.d.t.		Appelez-nous	-
24	488361		Screw, 4-40 X 1		Appelez-nous	-
25	625829		Clamp		Appelez-nous	-
26	488372		Screw, 8-32 X 1		Appelez-nous	-
27	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
28	939027		Water Inlet, Tube		Appelez-nous	-
29	488360		Screw, 4-24 X 3/4		Appelez-nous	-
30	625844		Thermostat		Appelez-nous	-
31	625947		Switch, S.p.s.t.		Appelez-nous	-
32	WP627018		Compression Nut   (Replaces: 627018)				$ 10.97
33	625827		Support		Appelez-nous	-
34	627199		Screw, Shoulder		Appelez-nous	-
35	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 21.16
36	627883		Tube, Inlet Valve		Appelez-nous	-
37	627003		Arm, Shut-off		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	625832		Spring, Shut-off Arm		Appelez-nous	-
40	537588		Nut, Inlet Valve		Appelez-nous	-
41	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
42	WP16123		Washer   (Replaces: 488292)				$ 7.70
43	625843		Heater, Mold		Appelez-nous	-
44	625840		Stripper, Ice		Appelez-nous	-
45	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
46	510716		Tube Clamp		Appelez-nous	-
47	WP488366		Tube Clamp   (Replaces: 488366)				$ 11.18
48	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
49	486214		Screw 8-15 X 1/2		Appelez-nous	-
50	00489128		Screw   (Replaces: 489128)				$ 859.97
51	625856		Mold & Heater Assembly (includes Illus. 43)		Appelez-nous	-
52	544304		Beraing & Inlet		Appelez-nous	-
56	227991		Connector Wire		Appelez-nous	-
57	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
57	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
57	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
57	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
57	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
57	627750		Harness, Wiring		Appelez-nous	-
57	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
57	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
57	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
57	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
57	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
57	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
57	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
57	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
57	799908		Silicone (spray)		Appelez-nous	-
57	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
57	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
57	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
57	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
57	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
57	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
57	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
57	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
57	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
57	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
57	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
57	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
57	833938		Kit, Terminal Connector				$ 8.07
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT879667		Parts List		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT1111969		Energy Label		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT1108042		Service & Wiring Sheet		Appelez-nous	-
	LIT1111980		Care & Use Guide		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
