SELECT A DIAGRAM

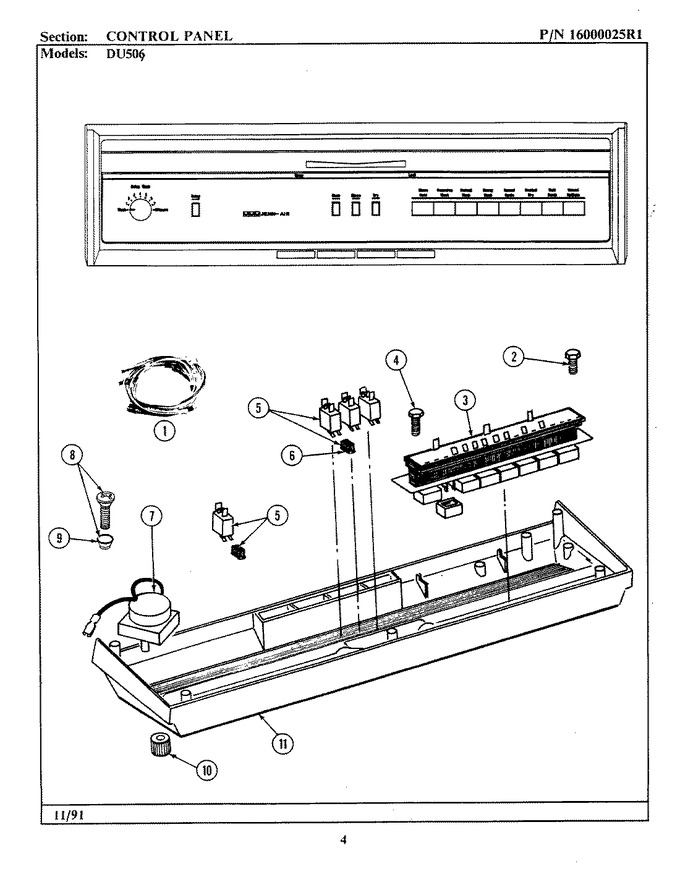

01 - Control Panel (du506)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903019 | Subharness | A1 |
|
- | ||||
| 1 | 902779 | Wire Harness | AO |
|
$ 367.49 | ||||
| 1 | 902492 | Wire Harness | AO |
|
- | ||||
| 1 | 903031 | Wire Harness | A1 |
|
- | ||||
| 2 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | AO |
|
$ 11.40 | ||||
| 3 | 902396 | Control Switch | AO |
|
- | ||||
| 4 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | AO |
|
$ 10.96 | ||||
| 5 | 901636 | Indicator Lamp | AO |
|
- | ||||
| 6 | 912065 | Lens | AO |
|
- | ||||
| 7 | 912193 | Bracket, Timer | AO |
|
- | ||||
| 7 | 902217 | Timer - Delay | AO |
|
- | ||||
| 7 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | AO |
|
$ 10.96 | ||||
| 8 | 901434 | Screw And Washer Assembly | AO |
|
- | ||||
| 10 | 912276 | Knob, Timer | AO |
|
- | ||||
| 11 | 902395 | Control Panel, W/inserts | AO |
|
- |
