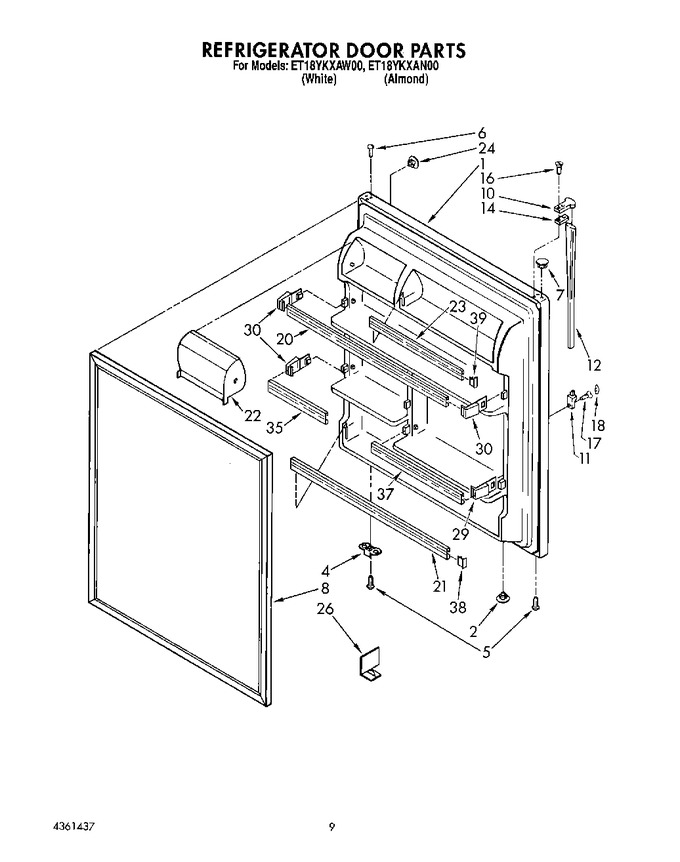

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159222		Panel, Refrigerator Door (includes Item 8) (almond)		Appelez-nous	-
1	2156051		Panel, Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2159053		Door Gasket, Magnetic		Appelez-nous	-
10	2148503		Handle End		Appelez-nous	-
11	WP2183139		Handle End Cap   (Replaces: 1101632)			Immediately	$ 51.98
12	2148036		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
14	943188		Spacer, Handle Door				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	WP1101634		Screw Cover   (Replaces: 981182)				$ 9.68
20	2159214		Trim, Door Shelf		Appelez-nous	-
21	2159216		Trim, Door Shelf		Appelez-nous	-
22	WP2218113		Compartment Door, Utility   (Replaces: 2156057)			Immediately	$ 50.33
23	2159047		Trim-door Shelf		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
26	2160049		Divider, Door Shelf		Appelez-nous	-
29	2156001		Endcap, Trim (2)		Appelez-nous	-
30	WP2195915		Endcap, Trim (4)   (Replaces: 2156000)				$ 13.72
35	2159215		Trim, Door Shelf		Appelez-nous	-
37	2159217		Trim-door Shelf		Appelez-nous	-
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 12.79
39	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
39	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
39	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
39	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
39	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
39	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
39	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
39	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
39	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
39	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
39	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
39	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
39	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
39	1117510		Torx Key				$ 5.84
39	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
39	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
39	833938		Kit, Terminal Connector				$ 8.47
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 8.03
39	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
39	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
39	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
39	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
39	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
39	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
39	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
39	350942		Primer White (13 Oz. Spray Can)				$ 94.14
39	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
39	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
39	350930		Paint, Pressurized Spray (12 Oz.) White				$ 40.12
	LIT4361437		Parts List		Appelez-nous	-
	LIT2159218		Energy Guide		Appelez-nous	-
	LIT2159220		Use & Care Guide		Appelez-nous	-
	LIT2154075		Service & Wiring Sheet		Appelez-nous	-
