SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator

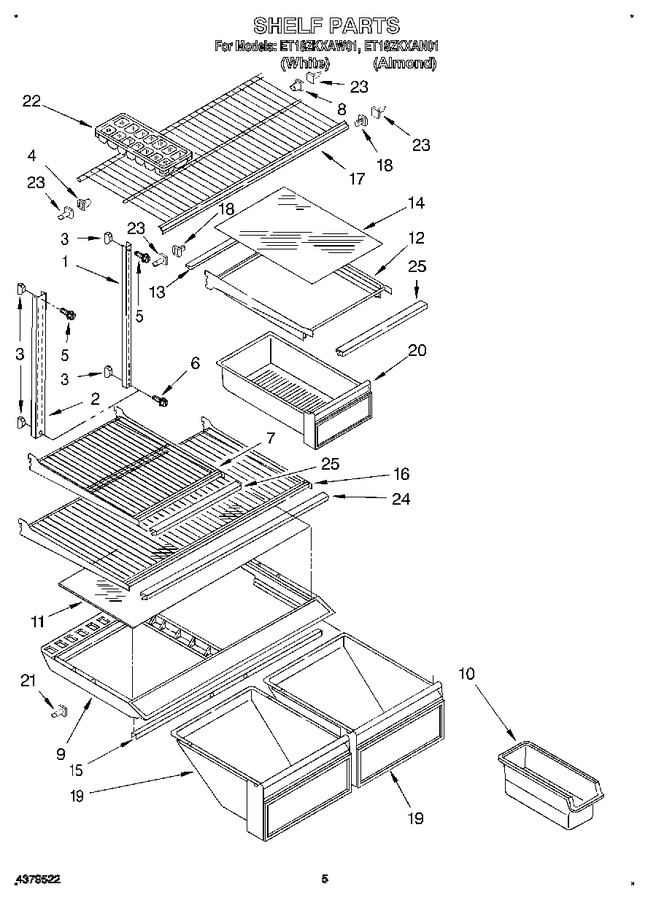

04 - Shelf


05 - Freezer Door


06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 31.35
4	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 41.66
5	489345		Screw,		Appelez-nous	-
6	WP488163		Screw,   (Replaces: 488163)				$ 7.92
7	2163920		Shelf, Cantilever		Appelez-nous	-
8	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 41.66
9	2148047		Crisper Cover		Appelez-nous	-
10	WP982704		Container (haze)   (Replaces: 2148079)				$ 32.55
10	WP982704		Container (white)   (Replaces: 1116917)				$ 32.55
11	1116715		Glass, Crisper Cover		Appelez-nous	-
12	1116703		Pan Shelf, Cantilever		Appelez-nous	-
13	1118119		Retainer, Glass		Appelez-nous	-
14	1116699		Glass, Meat Cover		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2172750)				$ 102.08
16	2160873		Shelf, Full Cantilever		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
18	946356		Shelf Stud		Appelez-nous	-
19	2148977		Pan, Crisper		Appelez-nous	-
20	2148978		Pan, Meat		Appelez-nous	-
21	1106612		Shelf Stud (2)				$ 7.56
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
23	946355		Support, Stud		Appelez-nous	-
24	2148050		Trim, Shelf		Appelez-nous	-
25	1118112		Trim, Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
