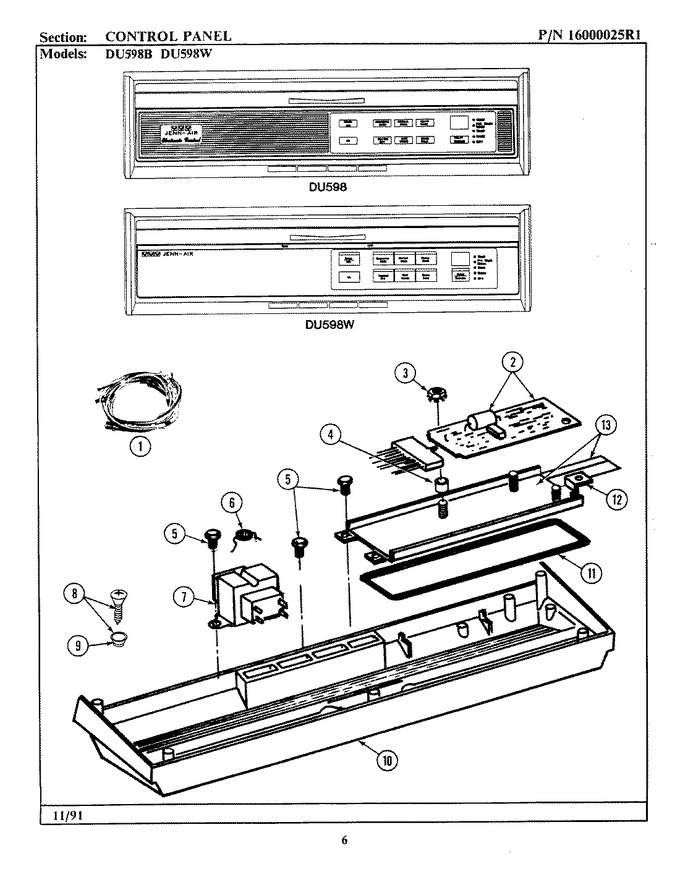

01 - Control Panel (du598)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 902879 | Capacitor (24 Volt) | 1 |
|
- | ||||
| 1 | 902789 | Capacitor Assy. | 1 |
|
- | ||||
| 1 | 902489 | Wire Harness (120 Volt) | 1 |
|
- | ||||
| 2 | 902241 | Microprocessor Board Assm | 1 |
|
- | ||||
| 2 | 912196 | Light Shield | 1 |
|
- | ||||
| 3 | M0282005 | Locknut (Replaces: 912077) | 1 |
|
$ 8.24 | ||||
| 4 | 912075 | Circuit Board Spacer | 1 |
|
- | ||||
| 5 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 1 |
|
$ 11.40 | ||||
| 6 | 520014 | Varistor | 1 |
|
- | ||||
| 7 | 306062 | Transformer | 1 |
|
- | ||||
| 8 | 901434 | Screw And Washer Assembly | 1 |
|
- | ||||
| 9 | 912006 | Washer | 1 |
|
- | ||||
| 12 | 912086 | Clip,speed | 1 |
|
- |
