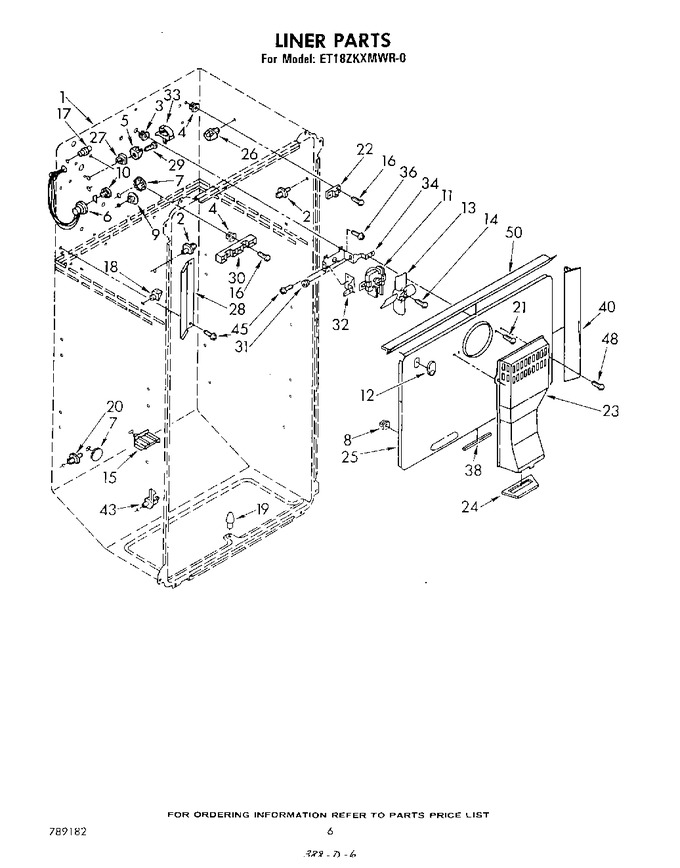

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 521878 | Stud, Shelf (2) |
|
- | |||||
| 3 | 941700 | Grommet (2) |
|
- | |||||
| 4 | 937252 | Grommet (4) |
|
- | |||||
| 5 | 836492 | Stud, Saddle |
|
- | |||||
| 6 | 937264 | Liner Wiring (ice Maker) |
|
- | |||||
| 7 | 519890 | Plug, Hole (4) |
|
- | |||||
| 8 | 848445 | Grommet (4) |
|
- | |||||
| 9 | 659598 | Plug, Hole (2) |
|
- | |||||
| 10 | 850738 | Receptacle |
|
- | |||||
| 11 | SM999 | Motor, Fan (Replaces: 941687) |
|
Immediately | $ 30.26 | ||||
| 12 | 659776 | Hole, Plug |
|
- | |||||
| 13 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 14 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 244.80 | |||||
| 15 | 836412 | Stud, Crisper Support |
|
- | |||||
| 16 | WP488163 | Screw, 8 X 13/16 (Replaces: 488725) |
|
$ 7.92 | |||||
| 17 | 526383 | Stud |
|
- | |||||
| 18 | 836374 | Stud, Retainer (4) |
|
- | |||||
| 19 | 836409 | Grommet, Post |
|
- | |||||
| 20 | 536475 | Stud, Shelf (2) |
|
$ 7.28 | |||||
| 21 | WP489069 | Screw, 8 X 1/2 (2) (Replaces: 488772) |
|
Immediately | $ 8.40 | ||||
| 22 | 937254 | Terminal Block (single) |
|
- | |||||
| 23 | 937282 | Air Duct |
|
- | |||||
| 24 | 939099 | Sealing Gasket |
|
- | |||||
| 25 | 937287 | Cover, Evaporator |
|
- | |||||
| 26 | 523263 | Stud, Saddle (r.s.) |
|
- | |||||
| 27 | 538449 | Grommet |
|
- | |||||
| 28 | 937269 | Wiring Shield |
|
- | |||||
| 29 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487109) |
|
Immediately | $ 8.28 | ||||
| 30 | 937253 | Terminal Block (multiple) |
|
- | |||||
| 31 | 548268 | Grommet (3) |
|
- | |||||
| 32 | 937277 | Bracket, Double |
|
- | |||||
| 33 | 851039 | Fastener, Wire |
|
- | |||||
| 34 | 937278 | Bracket, Single |
|
- | |||||
| 36 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.76 | ||||
| 38 | 939199 | Gasket, Sealing |
|
- | |||||
| 40 | 981750 | Gasket (2) |
|
- | |||||
| 43 | 836423 | Stud, Shelf (2) |
|
- | |||||
| 45 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 48 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 50 | 939103 | Gasket, Top |
|
- |
