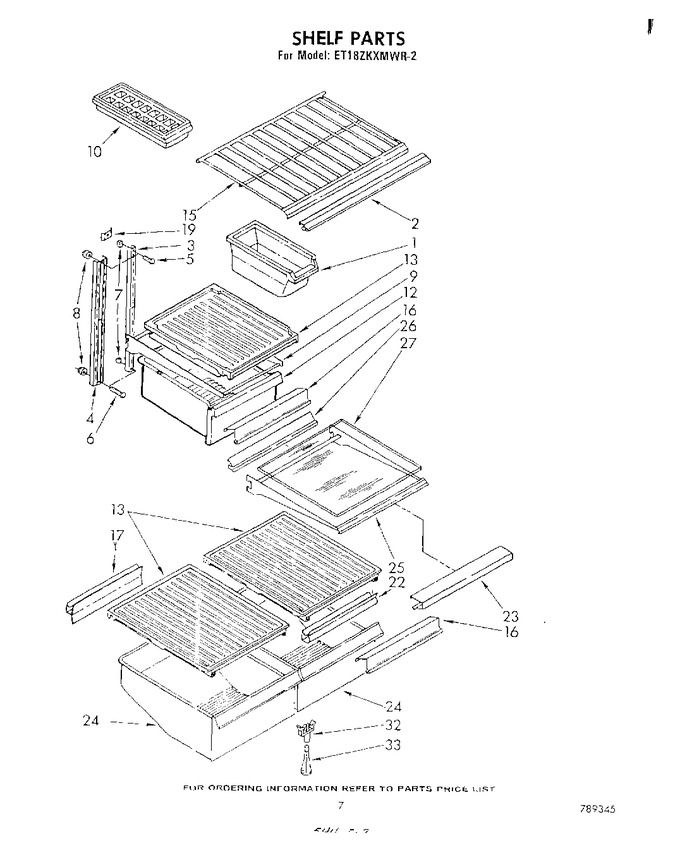

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
2	937309		Trim, Shelf		Appelez-nous	-
3	934267		Ladder (2)		Appelez-nous	-
4	936230		Ladder (1)		Appelez-nous	-
5	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
6	488980		Screw (repair)		Appelez-nous	-
6	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
7	520965		Support, Ladder (4)				$ 31.35
8	520959		Support, Ladder (2)		Appelez-nous	-
9	937316		Pan Shelf, Cantilever		Appelez-nous	-
10	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
12	937324		Pan, Meat		Appelez-nous	-
12	1100297		Pan, Meat (for Platinum Model Only)		Appelez-nous	-
13	943791		Cover, Pan Slide (3)		Appelez-nous	-
15	937306		Shelf, Wire		Appelez-nous	-
16	937322		Overlay (3)		Appelez-nous	-
17	982157		Gasket, Rear		Appelez-nous	-
19	983604		Screw Anchor		Appelez-nous	-
22	937319		Gasket, Front		Appelez-nous	-
23	937315		Trim, Shelf		Appelez-nous	-
24	1100295		Pan, Crisper (2) (for Platinum Model Only)		Appelez-nous	-
24	937321		Pan, Crisper (2)		Appelez-nous	-
25	937332		Shelf, Cantilever		Appelez-nous	-
26	1101528		Retainer, Glass Shelf		Appelez-nous	-
27	1101536		Glass, Cantilever Shelf		Appelez-nous	-
32	848562		Support, Cover				$ 24.30
33	937340		Post, Cover		Appelez-nous	-
