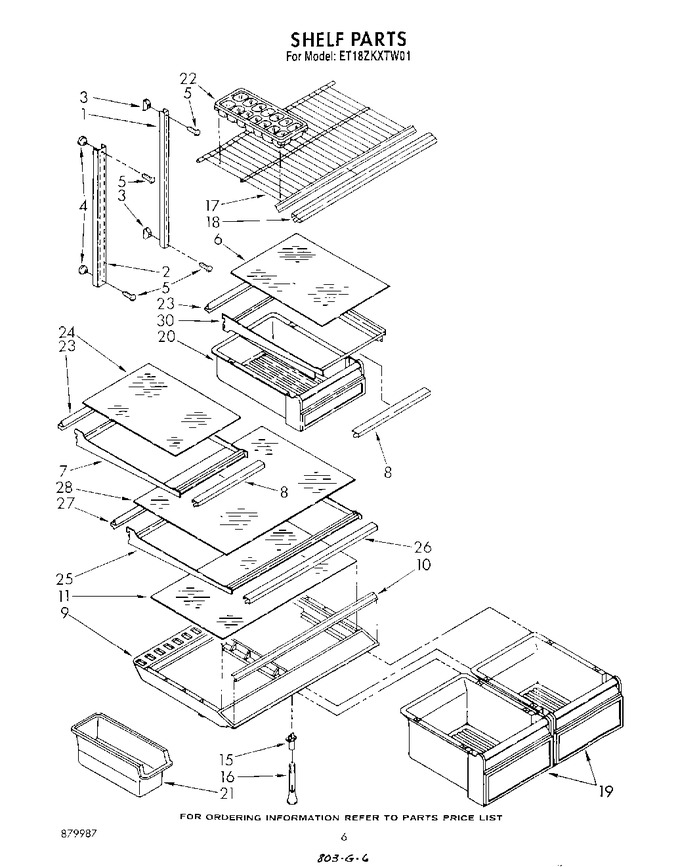

05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111807		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489148		Screw, 8-32 X 1-1/4 (6)		Appelez-nous	-
6	1111831		Glass, Shelf		Appelez-nous	-
7	1111846		Shelf, Frame		Appelez-nous	-
8	1111808		Trim, Shelf		Appelez-nous	-
9	1111855		Crisper Cover		Appelez-nous	-
10	946436		Trim, Crisper Cover		Appelez-nous	-
11	1111829		Glass, Crisper Cover		Appelez-nous	-
15	1103731		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	944734		Shelf, Freezer		Appelez-nous	-
18	1111814		Trim, Shelf Front		Appelez-nous	-
19	1111863		Pan, Crisper		Appelez-nous	-
20	1111866		Pan, Meat		Appelez-nous	-
21	WP982704		Container   (Replaces: 1106048)				$ 32.55
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
23	1111844		Reflector, Shelf		Appelez-nous	-
24	1111919		Glass, Shelf		Appelez-nous	-
25	1111848		Shelf, Frame Full		Appelez-nous	-
26	1111834		Trim, Shelf		Appelez-nous	-
27	1111850		Reflector, Shelf		Appelez-nous	-
28	1111849		Glass, Cantilever Shelf Full		Appelez-nous	-
30	1111843		Pan Shelf, Cantilever		Appelez-nous	-
