SELECT A DIAGRAM

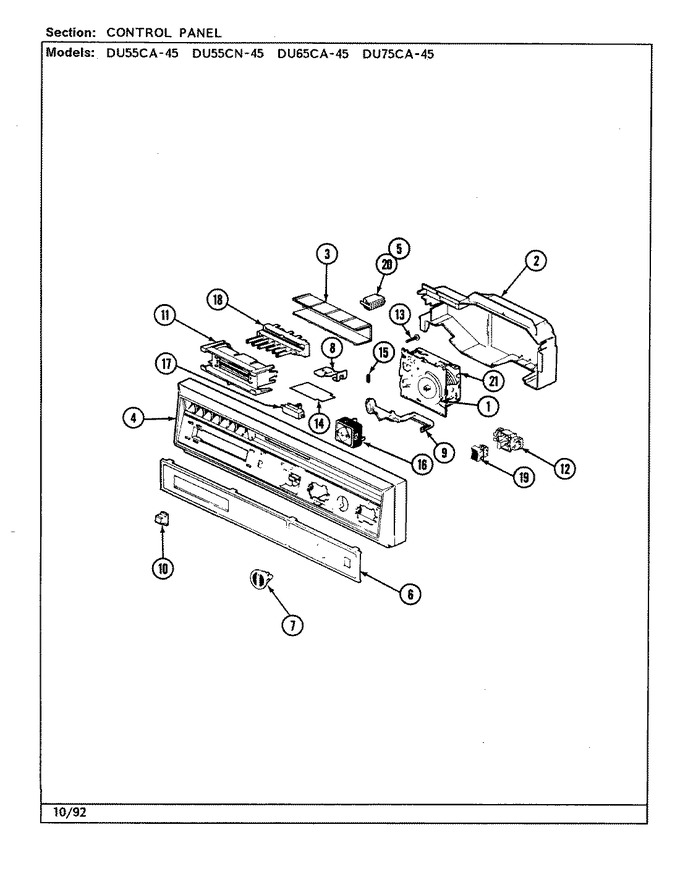

01 - Control Panel(du55ca/cn,du65ca,du75c-45)


02 - Door (du55ca/cn, Du65ca, Du75ca-45)


03 - Pump Assy (du55ca/cn, Du65ca, Du75ca-45)


04 - Rack (du55ca/cn, Du65ca, Du75ca-45)


05 - Tub (du55ca/cn, Du65ca, Du75ca-45)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195-0010		Timer, Cam		Appelez-nous	-
2	03000099		Cover Electrical		Appelez-nous	-
3	2275-0006		Cover, Pushbutton Switch		Appelez-nous	-
4	Y03000101		Escutcheon		Appelez-nous	-
5	Y03000072		Terminal, Housing		Appelez-nous	-
6	03000117		Insert Escutcheon		Appelez-nous	-
7	2615-0014		Knob, Timer		Appelez-nous	-
8	03000194		Switch		Appelez-nous	-
9	2660-0003		Lever, Detergent Timer		Appelez-nous	-
10	2170-0007		Button, Push		Appelez-nous	-
11	03000112		Switch Retainer		Appelez-nous	-
12	W10124350		Not Required Part Or See Note		Appelez-nous	-
13	3005-0032		Screw		Appelez-nous	-
14	3030-0006		Shield, Switch		Appelez-nous	-
15	3070-0007		Spring, Det. Trip		Appelez-nous	-
16	3135-0004		Switch, Cycling		Appelez-nous	-
17	3135-0006		Switch, Interlock		Appelez-nous	-
18	Y03000110		Switch Pushbutton		Appelez-nous	-
19	Y03000111		Switch Rocker		Appelez-nous	-
20	Y03000076		Terminal		Appelez-nous	-
21	Y03000116		Timer		Appelez-nous	-
