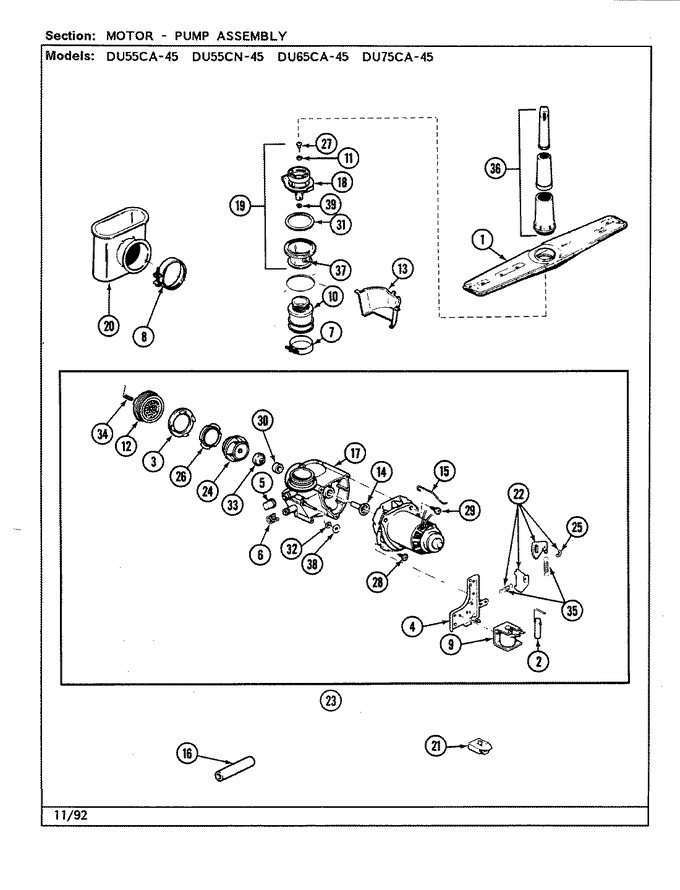

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y03000107 | Spray Arm & Shield |
|
- | |||||
| 2 | 2025-0001 | Link & Armature |
|
- | |||||
| 3 | 2085-0001 | Base, Wear Ring |
|
- | |||||
| 4 | 03000106 | Bracket, Solenoid |
|
- | |||||
| 6 | 2235-0004 | Clamp, Fill Hose |
|
- | |||||
| 7 | WP696392 | Clamp (Replaces: 2235-0007) |
|
$ 8.17 | |||||
| 8 | WP696392 | Clamp (Replaces: 2235-0008) |
|
$ 8.17 | |||||
| 9 | Y03000185 | Solenoid |
|
- | |||||
| 10 | 2260-0007 | Connector, Pump |
|
- | |||||
| 11 | 3280-0002 | Washer |
|
- | |||||
| 12 | 2465-0002 | Grader/nut |
|
- | |||||
| 13 | 2485-0001 | Guard |
|
- | |||||
| 14 | 3050-0001 | Shaft Guard, Slinger |
|
- | |||||
| 15 | 03000183 | Hanger Mechanism |
|
- | |||||
| 16 | 2530-0009 | Hose, Drain |
|
- | |||||
| 17 | WG04F00655 | Housing Pump Assembly (Replaces: 2535-0001) |
|
Immediately | $ 246.46 | ||||
| 18 | 2540-0002 | Hub, Spray Arm |
|
- | |||||
| 19 | 3130-0012 | Hub & Support Arm |
|
- | |||||
| 20 | 2575-0004 | Sump-inlet |
|
- | |||||
| 21 | 03000186 | Insulator |
|
- | |||||
| 22 | 2020-0004 | Arm Kit, Gate Valve |
|
- | |||||
| 23 | WG04F00655 | Motor Assy. (Replaces: Y03000182) |
|
Immediately | $ 246.46 | ||||
| 24 | 2560-0003 | Pump Impeller |
|
- | |||||
| 25 | 2940-0001 | Retainer |
|
- | |||||
| 26 | 2945-0001 | Wear Ring |
|
- | |||||
| 27 | 3005-0004 | Screw |
|
- | |||||
| 28 | 3005-0014 | Screw |
|
- | |||||
| 29 | 3005-0074 | Screw |
|
- | |||||
| 30 | 3010-0003 | Seal, Seat |
|
- | |||||
| 31 | 3010-0005 | Seal, Split Ring |
|
- | |||||
| 32 | 3010-0002 | Seal, Shaft |
|
- | |||||
| 33 | 3010-0004 | Seal, Shaft |
|
- | |||||
| 34 | 3070-0001 | Spring, Cutter |
|
- | |||||
| 35 | 3070-0002 | Spring, Gate Valve |
|
- | |||||
| 36 | 3175-0002 | Nozzle, Assembly |
|
- | |||||
| 37 | 3255-0001 | Valve, Check |
|
- | |||||
| 38 | 2735-0041 | Nut |
|
- | |||||
| 39 | 3280-0003 | Washer |
|
- |
