SELECT A DIAGRAM

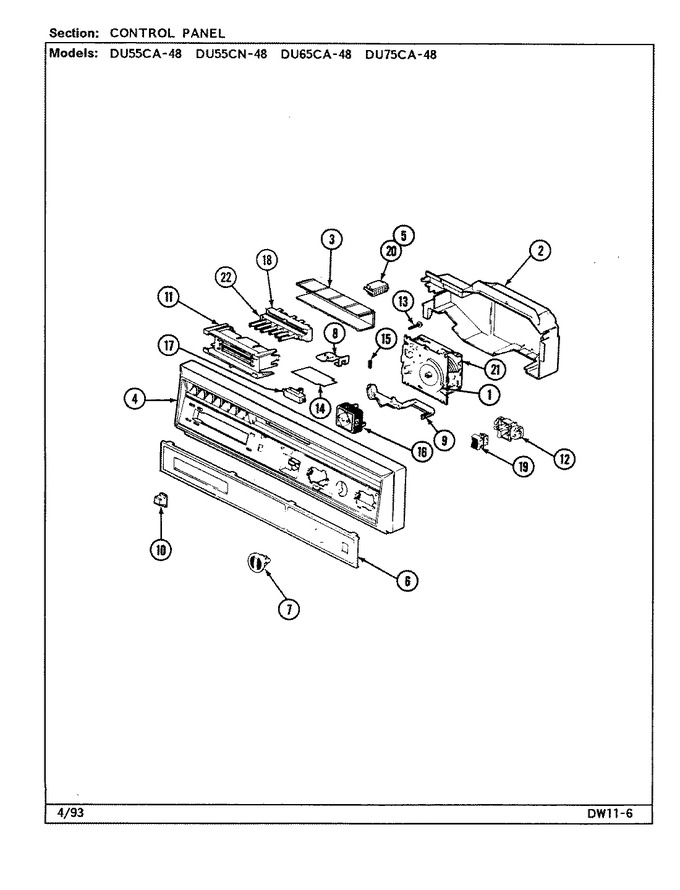

01 - Control Panel (du75ca/cn-48)


02 - Door (du75ca/cn-48)


03 - Motor & Pump Assy (du75ca/cn-48)


04 - Rack (du75ca/cn-48)


05 - Tub (du75ca/cn-48)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195-0010		Timer, Cam		Appelez-nous	-
2	03000099		Cover Electrical		Appelez-nous	-
4	Y03000101		Escutcheon		Appelez-nous	-
5	Y03000072		Terminal, Housing		Appelez-nous	-
6	2580-0044		Insert, Escutcheon		Appelez-nous	-
7	2615-0014		Knob, Timer		Appelez-nous	-
8	3135-0035		Switch, Leaf Assembly		Appelez-nous	-
9	2660-0003		Lever, Detergent Timer		Appelez-nous	-
10	03000077		Pushbutton		Appelez-nous	-
11	2940-0007		Retainer, Switch		Appelez-nous	-
12	03000112		Switch Retainer		Appelez-nous	-
13	3005-0032		Screw		Appelez-nous	-
14	3030-0006		Shield, Switch		Appelez-nous	-
15	3070-0007		Spring, Det. Trip		Appelez-nous	-
16	3135-0004		Switch, Cycling		Appelez-nous	-
17	3135-0006		Switch, Interlock		Appelez-nous	-
18	3135-0075		Switch, Push Button		Appelez-nous	-
20	Y03000076		Terminal		Appelez-nous	-
21	3170-0014		Timer		Appelez-nous	-
23	W10124378		Manual, Use & Care		Appelez-nous	-
24	16000329		Guide, Quick Ref. - Magic Chef		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
