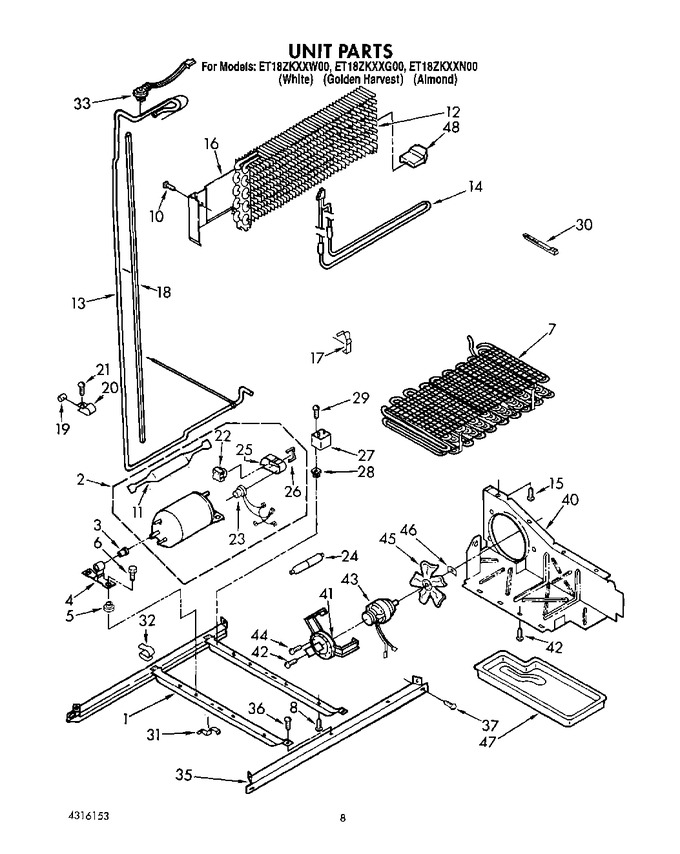

06 - Unit


07 - Refrigerator Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1116619		Unit, Frame		Appelez-nous	-
2	4318241		Compressor Kit Includes Items (11, 22, 23, 25, 26, 27)		Appelez-nous	-
3	1105219		Grommet, Compressor Bracket		Appelez-nous	-
4	1105220		Bracket, Mounting		Appelez-nous	-
5	1105200		Grommet, Compressor (4)		Appelez-nous	-
6	489334		Screw (4)		Appelez-nous	-
7	1116624		Condenser Assembly		Appelez-nous	-
8	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
10	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487869)			Immediately	$ 11.87
11	W10843121		Drier   (Replaces: 4318249)			Immediately	$ 57.13
12	1118034		Evaporator Assembly		Appelez-nous	-
13	1116630		Heat, Exchanger		Appelez-nous	-
14	2149646		Heater, Defrost		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	1116636		Heat Shield		Appelez-nous	-
17	1127590		Clamp, Dryer		Appelez-nous	-
18	1108690		Sleeve		Appelez-nous	-
19	510769		Dampener (2)		Appelez-nous	-
20	510716		Tube Clamp (2)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 22.22
22	N/A		Relay (see Overload)		Appelez-nous	-
23	2154945		Overload (service (includes Relay))		Appelez-nous	-
23	2149982		Overload (production (includes Relay))		Appelez-nous	-
24	1121121		Muffler		Appelez-nous	-
25	1105221		Terminal Cover (production)		Appelez-nous	-
25	2154452		Terminal Cover (service)		Appelez-nous	-
26	1105222		Strap, Cover		Appelez-nous	-
27	WPW10662129		Running, Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
27	WPW10662129		Running, Capacitor (production)   (Replaces: 1114291)			Immediately	$ 58.86
28	509812		Screw Grommet		Appelez-nous	-
29	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
30	851095		Strap		Appelez-nous	-
31	548744		Clip, Unit Cover		Appelez-nous	-
32	548745		Clip, Wire (2)		Appelez-nous	-
33	WP4387503		Defrost Bimetal   (Replaces: 2149643)			Immediately	$ 47.89
35	1116622		Unit, Rail		Appelez-nous	-
36	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.84
37	489340		Screw (4)   (Replaces: 488683)		Appelez-nous	-
40	1114768		Air, Baffle		Appelez-nous	-
41	1115132		Fan, Mounting Bracket		Appelez-nous	-
42	488624		Screw, 8 X 3/8		Appelez-nous	-
43	833697		Fan Motor   (Replaces: 2149963)			Immediately	$ 88.15
44	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.71
45	1115135		Fan Blade		Appelez-nous	-
46	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
47	1116604		Tray, Evaporator		Appelez-nous	-
48	876764		Valve, Access(3/16``)			Immediately	$ 95.92
48	978028		Valve, Access (1/2)		Appelez-nous	-
48	978029		Valve Access (5/8``)				$ 93.85
48	978030		Valve, Access (3/4``)				$ 137.25
48	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
48	1118017		Wedge, Air Baffle		Appelez-nous	-
48	978026		Valve, Access (5/16``)			Immediately	$ 134.49
48	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
