SELECT A DIAGRAM

01 - Control Panel, Door, Rack, Det.cup & Tub

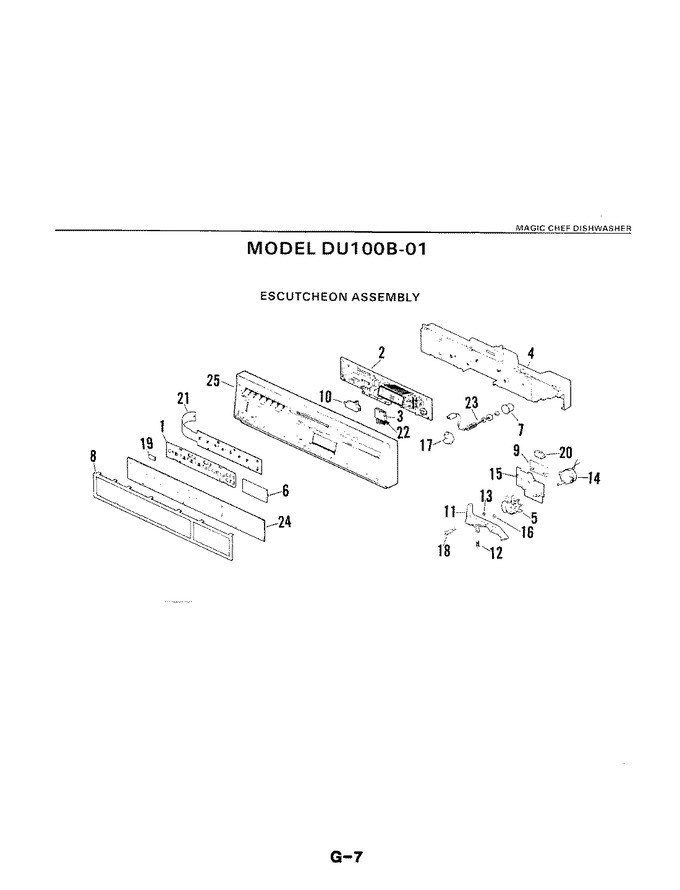

02 - Escutcheon Assembly (du100b-01)


03 - Motor & Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2265-0006		Control		Appelez-nous	-
3	2260-0008		Connector, Elec 5 Pins		Appelez-nous	-
3	2260-0011		Connector, Elec. 6 Pin		Appelez-nous	-
4	2275-0031		Cover, Circuit Board		Appelez-nous	-
5	2195-0006		Cam, Det Motor		Appelez-nous	-
6	2390-0005		Filter, Display		Appelez-nous	-
7	2535-0005		Housing, Thermistor		Appelez-nous	-
8	2425-0010		Frame		Appelez-nous	-
9	2590-0009		Insulator, Switch		Appelez-nous	-
10	3135-0064		Switch		Appelez-nous	-
11	2660-0018		Lever, Det Trip		Appelez-nous	-
12	3070-0007		Spring, Det. Trip		Appelez-nous	-
13	2735-0027		Lock Nut		Appelez-nous	-
14	2720-0012		Motor, Detergent Cup		Appelez-nous	-
15	2845-0023		Bracket, Barrier		Appelez-nous	-
16	2940-0011		Retainer		Appelez-nous	-
17	2940-0012		Retainer, Thermistor		Appelez-nous	-
18	3125-0004		Nut Lock		Appelez-nous	-
19	3135-0066		Switch, Key		Appelez-nous	-
20	3135-0067		Switch, Deter Mtr		Appelez-nous	-
21	3135-0065		Switch		Appelez-nous	-
22	3154-0002		Terminal		Appelez-nous	-
23	3155-0002		Thermistor & Spring		Appelez-nous	-
24	3205-0007		Touchpad		Appelez-nous	-
25	2799-0005		Decorative Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
