SELECT A DIAGRAM
01 - Door
02 - Pump Assembly
03 - Rack
04 - Tub
New Model Search:

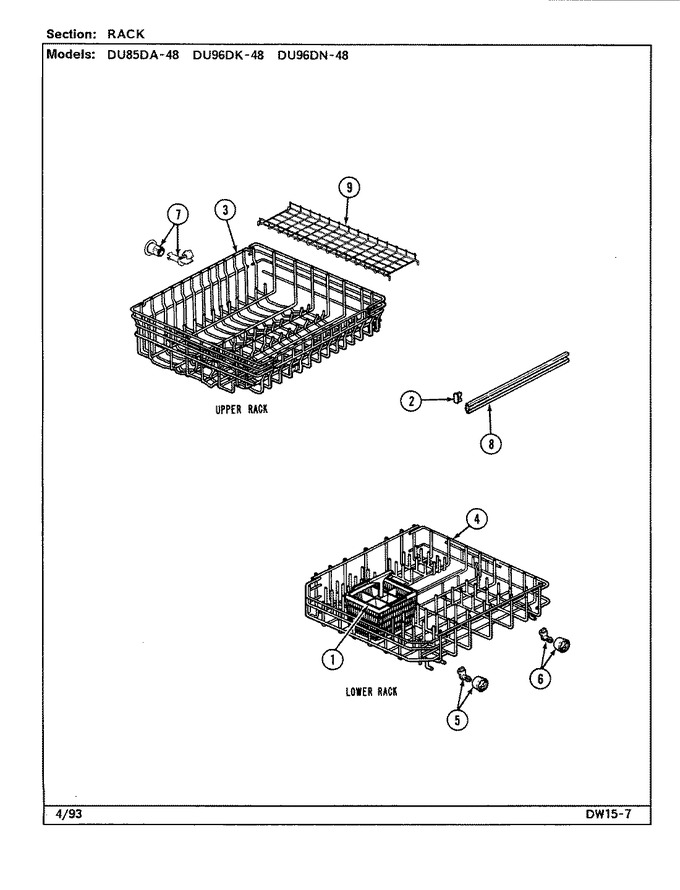

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y03000021 | Basket, Silverware |
|
- | |||||
| 2 | 2355-0002 | End Cap, Rack Slide |
|
- | |||||
| 3 | 2905-0011 | Rack Assy. (upr) |
|
- | |||||
| 4 | 2905-0009 | Rack & Roller Assy. (lwr) |
|
- | |||||
| 5 | 2955-0007 | Roller Assembly,lower Front |
|
$ 27.81 | |||||
| 6 | 2955-0008 | Roller Assy. (rear Lower) |
|
- | |||||
| 7 | 2955-0011 | Roller & Stud |
|
- | |||||
| 8 | 3045-0002 | Slide, Rack |
|
- | |||||
| 9 | 03000216 | Tray |
|
- |
