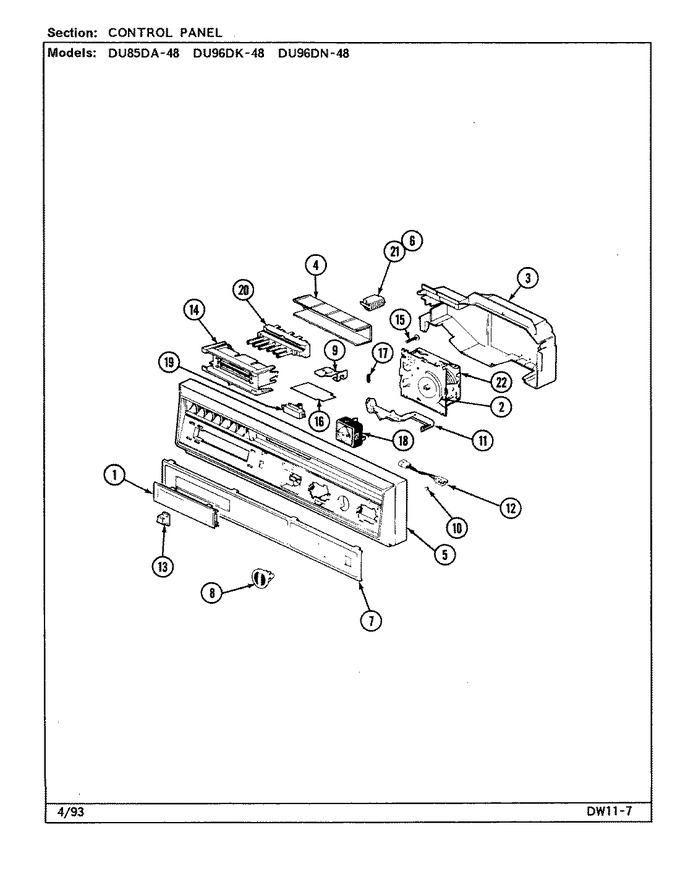

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	03000014		Bezel		Appelez-nous	-
2	2195-0010		Timer, Cam		Appelez-nous	-
3	03000099		Cover Electrical		Appelez-nous	-
4	2275-0007		Cover, Switch		Appelez-nous	-
5	03000103		Escutcheon		Appelez-nous	-
6	Y03000072		Terminal, Housing		Appelez-nous	-
7	Y03000005		Insert, Esc.		Appelez-nous	-
8	03000013		Knob, Timer		Appelez-nous	-
9	3135-0035		Switch, Leaf Assembly		Appelez-nous	-
10	2655-0003		Lens		Appelez-nous	-
11	2660-0003		Lever, Detergent Timer		Appelez-nous	-
12	2665-0002		Light, Signal		Appelez-nous	-
13	03000011		Pushbutton C.c.		Appelez-nous	-
13	03000007		Pushbutton, L.w.		Appelez-nous	-
13	03000010		Pushbutton N.w.		Appelez-nous	-
13	03000006		Pushbutton S.s.		Appelez-nous	-
13	03000012		Pushbutton H.o.		Appelez-nous	-
13	03000008		Pushbutton Wh		Appelez-nous	-
13	03000009		Pushbutton D.h.		Appelez-nous	-
14	2940-0003		Retainer, Switch		Appelez-nous	-
15	3005-0032		Screw		Appelez-nous	-
16	3030-0006		Shield, Switch		Appelez-nous	-
17	3070-0007		Spring, Det. Trip		Appelez-nous	-
18	3135-0004		Switch, Cycling		Appelez-nous	-
19	3135-0006		Switch, Interlock		Appelez-nous	-
20	3135-0077		Switch, Pushbutton		Appelez-nous	-
21	Y03000076		Terminal		Appelez-nous	-
22	165D3080P060		Manual, Use & Care		Appelez-nous	-
22	3170-0019		Timer		Appelez-nous	-
