SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner

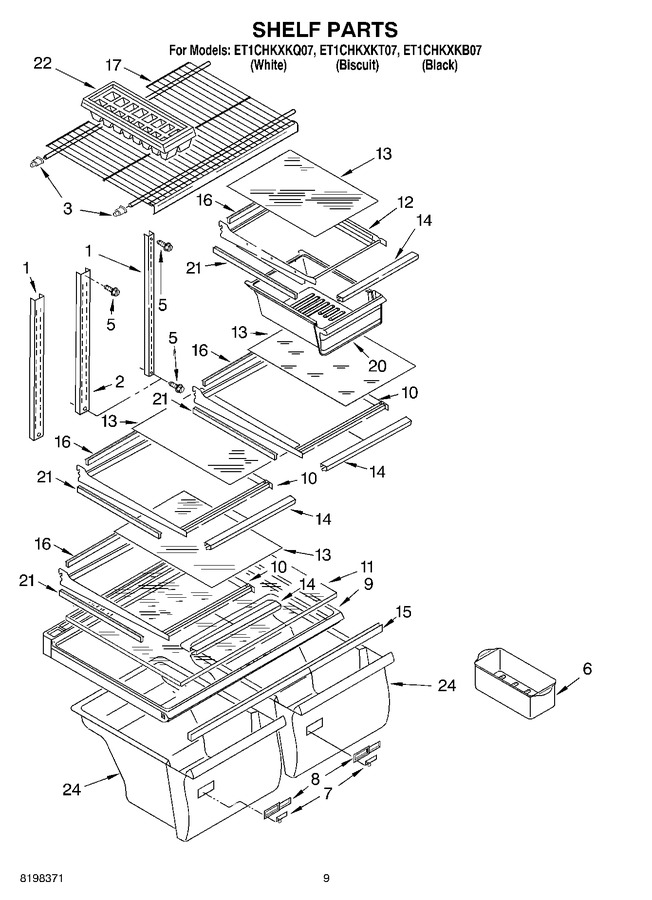

04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	W10136387A		Egg Bin   (Replaces: 2216624)				$ 19.54
7	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
8	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81
9	WP2314549		Cover, Crisper   (Replaces: 2210526)				$ 279.10
10	2201102E		Shelf, Cantilever		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 264.41
12	2201106		Pan, Shelf Cantilever				$ 77.79
13	2200987		Glass, Shelf		Appelez-nous	-
14	2188685		Trim, Shelf Front		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	WP2188689		Trim, Shelf Rear   (Replaces: 2188687)				$ 121.55
17	2184667		Shelf, Freezer		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2218132K)			Immediately	$ 159.64
21	2188711		Trim, Shelf Side		Appelez-nous	-
22	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
24	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
24	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
24	WP503695		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (cork Sealer (1/4 Pound))   (Replaces: 503695)				$ 123.84
24	542639		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (cement, Alumilastic (1-1/4 Oz.))		Appelez-nous	-
24	WP542638		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (grease, Silicone (1/2 Oz.))   (Replaces: 542638)			Immediately	$ 12.78
24	WP505587		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (sealer, Mastic (1 Qt.))   (Replaces: 505587)			Immediately	$ 182.65
24	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Insulation (14 Pcs. 3`` X 24`` X 48``))   (Replaces: 876305)				$ 243.14
24	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
24	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
24	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
24	786032		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
24	833938		Kit, Terminal Connector				$ 8.47
24	1117510		Torx Key				$ 5.84
24	W10854037		Crisper Pan   (Replaces: 2218141)			Immediately	$ 179.19
24	212643		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (sealer, Gum (4 Feet))			Immediately	$ 82.13
24	479502		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (tape, Vinyl (3/4`` X 108``))				$ 66.77
24	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Insulation (2 Pcs. 3`` X 24 `` X 48``))				$ 243.14
24	876029		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``))		Appelez-nous	-
24	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
24	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
24	799833		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Evaporator Repair (aluminum Epoxy))		Appelez-nous	-
24	799832		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (kit, Porcelain Repair (white))		Appelez-nous	-
24	350942		Primer, White (12 Oz. Spray Can)				$ 94.14
24	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
24	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12

    View Diagram in Separate Window       Print Part List
