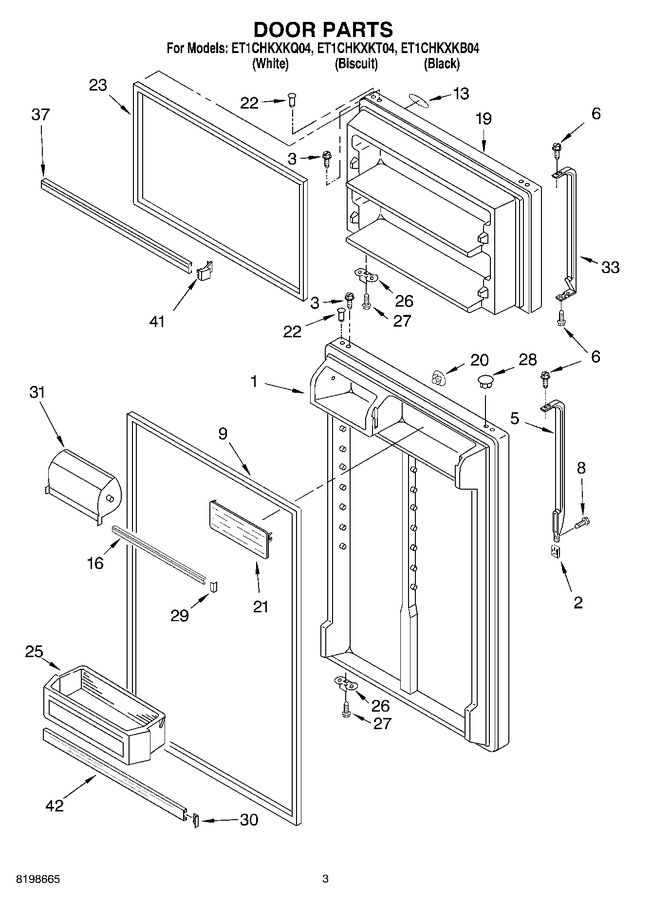

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023687		Refrigerator Door (includes 9 & 22) (black)   (Replaces: 2200714)				$ 805.44
1	W11023679		Refrigerator Door (includes 9 & 22) (white)   (Replaces: 2183920)				$ 758.35
1	W11023688		Refrigerator Door (includes 9 & 22) (biscuit)   (Replaces: 2205284)		Appelez-nous	-
2	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.52
2	2193353B		Handle, Trim (black)				$ 5.85
2	2193353T		Handle, Trim (biscuit)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
5	4388950		Handle Center (black)   (Replaces: 2213112B)				$ 235.81
5	4388947		Handle Center (white)   (Replaces: 2213112W)				$ 204.47
5	2213112T		Handle Center (biscuit)		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
8	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
9	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 183.67
9	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 330.95
13	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
19	W11023688		Freezer Door (includes 22 & 23) (biscuit)   (Replaces: 2204686)		Appelez-nous	-
19	W11023679		Freezer Door (includes 22 & 23) (white)   (Replaces: 2182489)				$ 758.35
19	W11023687		Freezer Door (includes 22 & 23) (black)   (Replaces: 2200711)				$ 805.44
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.77
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.61
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.97
21	WP2188236		Door, Flip-up   (Replaces: 2188236)				$ 64.38
22	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
23	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 336.01
23	2177310		Door Gasket,magnetic (black)   (Replaces: 2214969)				$ 335.31
25	WP2204812		Bin, Door Shelf   (Replaces: 2204812)				$ 80.45
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 8.19
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.99
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218118		Compartment Door   (Replaces: 2218118)				$ 81.92
33	4388950		Handle, F.c. (black)   (Replaces: 2213111B)				$ 235.81
33	2213111T		Handle, F.c. (biscuit)		Appelez-nous	-
33	4388947		Handle, F.c. (white)   (Replaces: 2213111W)				$ 204.47
37	2195947		Trim-door (2)				$ 50.94
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 13.18
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 114.74
