SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Optional Parts

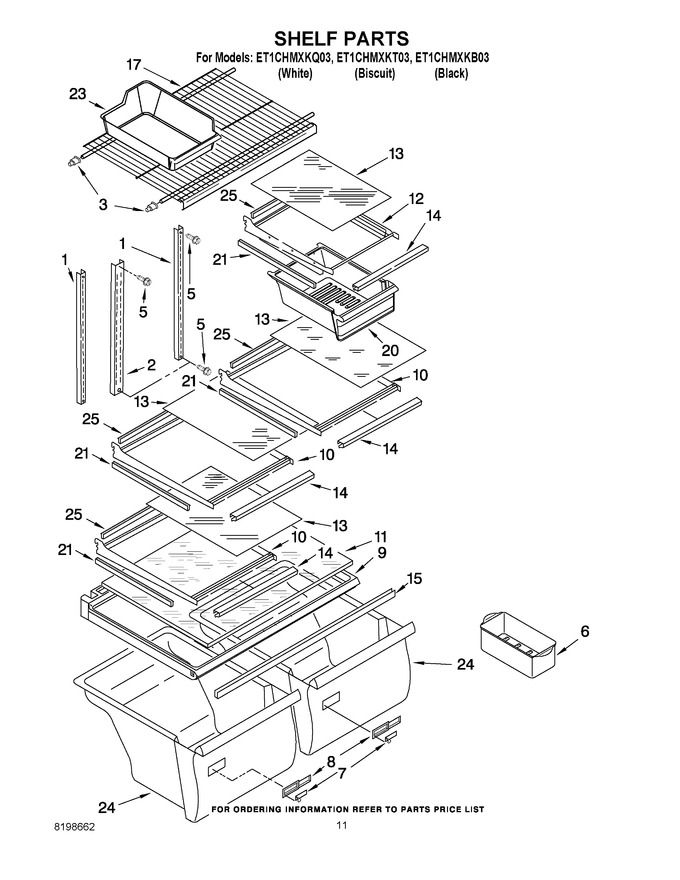

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
5	WP489478		Screw (6)   (Replaces: 489478)				$ 7.75
6	W10136387A		Egg Bin   (Replaces: 2216624)				$ 18.61
7	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
8	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06
9	WP2314549		Crisper Cover   (Replaces: 2210526)				$ 265.81
10	2201102E		Shelf, Cantilever		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2210573)				$ 251.82
12	2201106		Pan, Shelf Cantilever				$ 77.79
13	2200987		Glass, Shelf		Appelez-nous	-
14	2188685		Trim, Shelf Front		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
17	2184667		Shelf, Freezer		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2218132K)			Immediately	$ 159.64
21	2188711		Trim, Shelf Side		Appelez-nous	-
23	2254352A		Bucket, Ice   (Replaces: 2254352)				$ 55.85
24	W10854037		Crisper Pan   (Replaces: 2218141)			Immediately	$ 170.66
25	WP2188689		Trim, Shelf Rear   (Replaces: 2188687)				$ 115.76

    View Diagram in Separate Window       Print Part List
