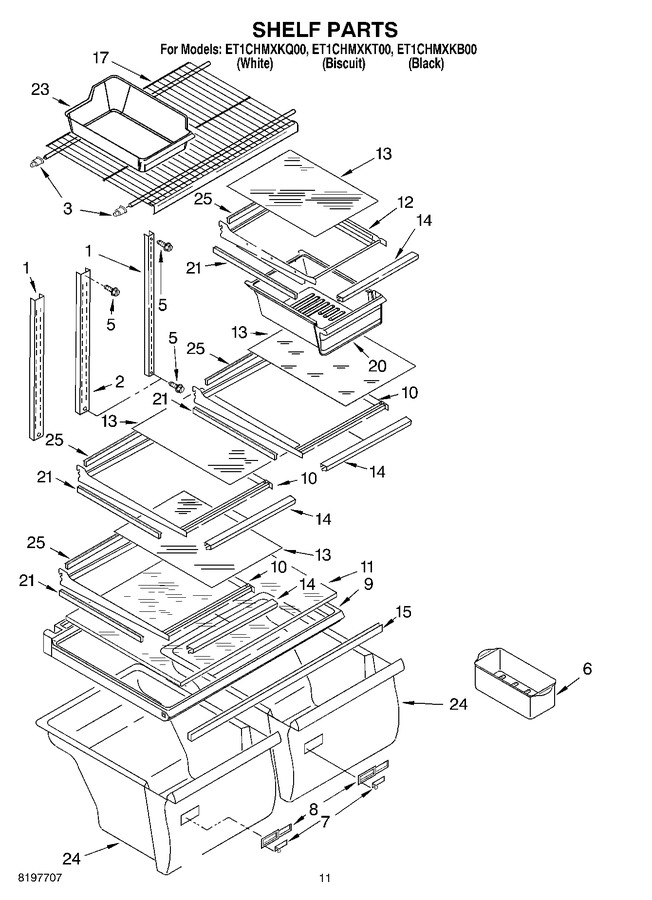

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.00
5	983604		Screw		Appelez-nous	-
6	W10136387A		Bin, Egg   (Replaces: 2216624)				$ 18.61
7	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
8	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.06
9	WP2314549		Cover, Crisper   (Replaces: 2210526)				$ 265.81
10	2201102E		Shelf, Cantilever		Appelez-nous	-
11	WP2176225		Insert, Crisper Cover   (Replaces: 2176225)				$ 251.82
12	2201106		Pan, Shelf Cantilever				$ 77.79
13	2200987		Glass, Shelf		Appelez-nous	-
14	2188526		Trim, Shelf Front		Appelez-nous	-
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 97.22
17	2184667		Shelf, Freezer		Appelez-nous	-
20	WP2218132K		Pan, Meat   (Replaces: 2201032K)			Immediately	$ 159.64
21	2188517		Trim, Shelf Side				$ 54.51
23	2254352A		Bucket, Ice   (Replaces: 2176219)				$ 55.85
24	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 168.60
25	833938		Kit, Terminal Connector				$ 8.07
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
25	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
25	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
25	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
25	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
25	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
25	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
25	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
25	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
25	350942		Primer White (13 Oz. Spray Can)				$ 89.66
25	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
25	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
25	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
25	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
25	1117510		Torx Key				$ 5.84
25	WP2188689		Trim, Shelf Rear   (Replaces: 2188521)				$ 115.76
25	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
25	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
25	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
25	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
25	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
25	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
25	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
25	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
